T4112512041-000 | TE Connectivity

Jack, 4 pole, screw connection, screw locking, angled, T4112512041-000

Order No.: 38P6595
EAN: 4099889720891
MPN:
T4112512041-000

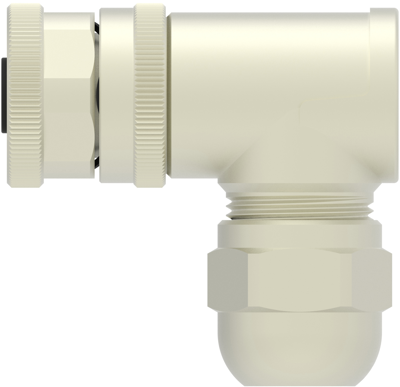

T4112512041-000 TE Connectivity Other Circular Connectors Image 1
T4112512041-000 TE Connectivity Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.0178 € *
Available in 5 Days: 21 pcs. - if ordered today
Total Price:
15.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
15.0178 €

Socket, T4112512041-000, TE Connectivity

Assembly Type: Electrical Connector, Connector System: Wire-to-Wire, Sealable: Yes, Connector & Contact Terminates To: Wire & Cable, Circular Connector Type: Receptacle, Factory Installed Backshell: With, Number of Positions: 4, Number of Power Positions: 0, Number of Signal Positions: 4, Contacts Preloaded: Yes, Voltage: 250 Vrms, O-Ring Material: Silicone, Shell Plating Material: Nickel, Shell Base Material: Copper Alloy, Circular Connector Insulation Material Type: Polyamide 66 GF25, Contact Current Rating (Max): 4 A, Reverse Gender: No, Circular Connector Contact Type: Socket, Mating Retention Type: Threaded Coupling, Polarization Code: D, Mating Alignment Type: Keyed, Circular Connector Shell Size: 20, Wire Size: 0.82 -0.2 mm², Wire Size: 18 – 24 AWG, IP Dust Sealing Level: 6, Operating Temperature Range: -40 – 85 °C, Durability Rating: 100 Cycles, Circuit Application: Signal, Shielded: Yes, UL Flammability Rating: HB, Position Locations Omitted: 0

Technical specifications
Version socket
Cable cross-section 0.2-0.82 mm²
Pin number 4 pole
Orientation angled
Contact connection screw connection
Type of locking screw locking
Cable diameter 4 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin TW
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
