T4112001051-000 | TE Connectivity

Jack, 5 pole, screw connection, screw locking, angled, T4112001051-000

Order No.: 38P6629
EAN: 4099889721232
MPN:
T4112001051-000

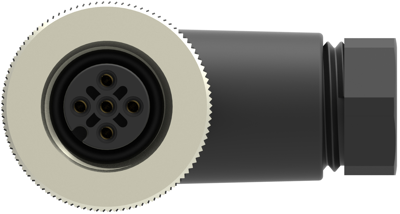

T4112001051-000 TE Connectivity Other Circular Connectors Image 1

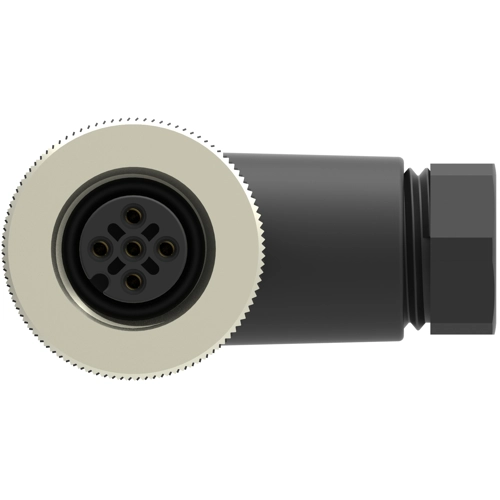

T4112001051-000 TE Connectivity Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.1511 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
9.15 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1511 €
10 pcs.
8.4133 €
50 pcs.
7.5803 €
100 pcs.
6.8187 €
*incl. VAT plus shipping costs
Subject to prior sale

standard circular connector, T4112001051-000, TE Connectivity

Assembly Type: Electrical Connector, Connector System: Wire-to-Wire, Sealable: Yes, Connector & Contact Terminates To: Wire & Cable, Circular Connector Type: Receptacle, Factory Installed Backshell: No, Number of Positions: 5, Number of Power Positions: 0, Number of Signal Positions: 5, Contacts Preloaded: Yes, Operating Voltage: 60 VDC, O-Ring Material: Silicone, Shell Base Material: PBT, Circular Connector Insulation Material Type: Polyamide 66 GF25, Contact Current Rating (Max): 4 A, Reverse Gender: No, Circular Connector Contact Type: Socket, Mating Retention Type: Threaded Coupling, Polarization Code: A, Mating Alignment Type: Keyed, Circular Connector Shell Size: 20, Wire Size: 18 – 24 AWG, Wire Size: 0.82 – 0.2 mm², IP Dust Sealing Level: 6, Operating Temperature Range: -40 – 85 °C, Durability Rating: 100 Cycles, Circuit Application: Signal, Shielded: No, UL Flammability Rating: HB, Packaging Quantity: 1, Field Serviceable: Yes

Technical specifications
Orientation angled
Pin number 5 pole
Type of locking screw locking
Contact connection screw connection
Assembly cable assembly
Cable diameter 4 to 6 mm
Cable cross-section 0.2-0.82 mm²
Additional parts equipped
Version socket
Shell Material PA
Logistics
Customs tariff number 85366930
Country of origin CN
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
