T4111002081-000 | TE Connectivity

Plug, 8 pole, screw connection, screw locking, straight, T4111002081-000

Order No.: 38P6656
EAN: 4099889721508
MPN:
T4111002081-000

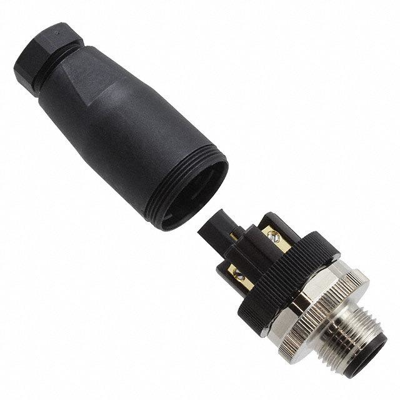

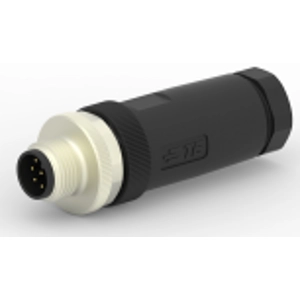

T4111002081-000 TE Connectivity Other Circular Connectors Image 1
T4111002081-000 TE Connectivity Other Circular Connectors Image 2
T4111002081-000 TE Connectivity Other Circular Connectors Image 3
T4111002081-000 TE Connectivity Other Circular Connectors Image 4
T4111002081-000 TE Connectivity Other Circular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
12.7449 € *
Available in 5 Days: 6 pcs. - if ordered today
Total Price:
12.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.7449 €

M12 connector, T4111002081-000, TE Connectivity

The T4111002081-000 is a M12 screw connection that continues to fill the ongoing needs for sensor connection in industrial machinery and factory automation. This product also finds applications outside of their traditional industries where a compact reliable connection system with environmental protection is required.

Features

  • Acutator-sensor plug connections for DeviceNet
  • IO link and profibus
  • Unshielded
  • Number of positions: 8
  • Sealable: Yes
  • Connector style: receptacle
Technical specifications
Cable diameter 4 to 6 mm
Type of locking screw locking
contact surface gold-plated
Assembly cable assembly
Contact connection screw connection
Cable cross-section 0.2-0.82 mm²
Pin number 8 pole
Version plug
Shell Material PA
Orientation straight
Logistics
Country of origin TW
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
