T4111001081-000 | TE Connectivity

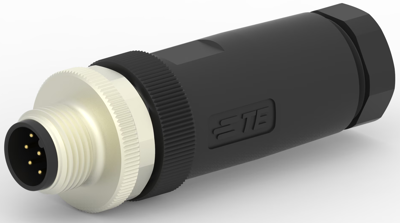

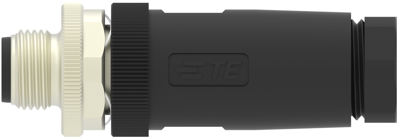

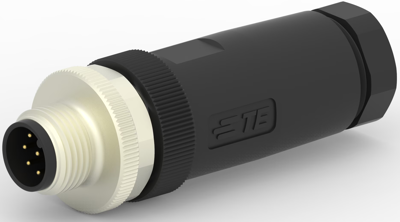

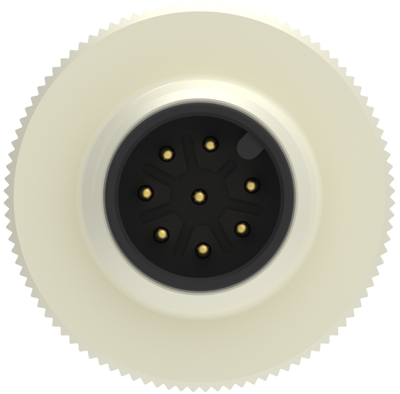

Circular connector, 8 pole, screw connection, screw locking, straight, T4111001081-000
Unit Price (€ / pc.)
16.1364 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
16.14 € *
Price list
Quantity
Price per unit*
1 pcs.
16.1364 €
10 pcs.
14.8512 €
50 pcs.
13.3637 €
100 pcs.
12.0309 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, T4111001081-000, TE Connectivity
Standard circular connector, Wire-to-Wire, 8 Position, Sealable, Wire & Cable, Signal, PBT, A Polarization code, Polyamide 66 GF25.
Technical specifications
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Contact connection | screw connection | |
| Cable cross-section | 0.2-0.82 mm² | |
| Pin number | 8 pole | |
| Version | plug | |
| Shell Material | PBT | |
| Orientation | straight |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
