T4110002041-000 | TE Connectivity

Jack, 4 pole, screw connection, screw locking, straight, T4110002041-000

Order No.: 38P6637
EAN: 4099889721317
MPN:
T4110002041-000

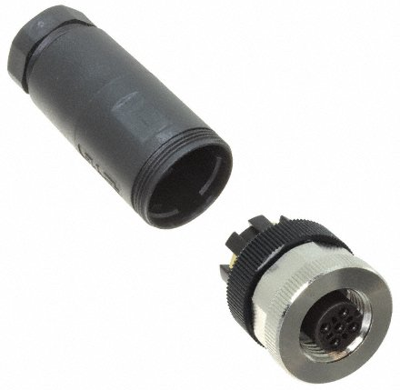

T4110002041-000 TE Connectivity Other Circular Connectors Image 1
T4110002041-000 TE Connectivity Other Circular Connectors Image 2
T4110002041-000 TE Connectivity Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
8.6751 € *
Available: 25 pcs.
Available in 5 Days: 121 pcs. - if ordered today
Total Price:
8.68 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6751 €
10 pcs.
8.0563 €
25 pcs.
7.5208 €
50 pcs.
6.8306 €
*incl. VAT plus shipping costs
Subject to prior sale

M12 connector, T4110002041-000, TE Connectivity

The T4110002041-000 is a M12 screw connection that continues to fill the ongoing needs for sensor connection in industrial machinery and factory automation. This product also finds applications outside of their traditional industries where a compact reliable connection system with environmental protection is required.

Features

  • Acutator-sensor plug connections for DeviceNet
  • IO link and profibus
  • Unshielded
  • Number of positions: 4
  • Sealable: Yes
  • Connector style: receptacle
Technical specifications
Filter Property Value
Cable cross-section 0.2-0.82 mm²
Cable diameter 4 to 6 mm
contact surface gold-plated
Type of locking screw locking
Shell Material PA
Version socket
Orientation straight
Assembly cable assembly
Pin number 4 pole
Contact connection screw connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85366910
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
