T4110001041-000 | TE Connectivity

Jack, 4 pole, screw connection, screw locking, straight, T4110001041-000

Order No.: 38P6636
EAN: 4099889721300
MPN:
T4110001041-000

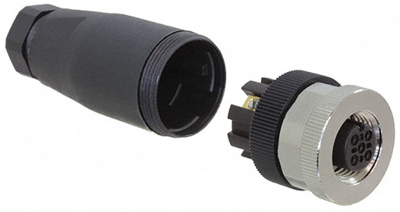

T4110001041-000 TE Connectivity Other Circular Connectors Image 1

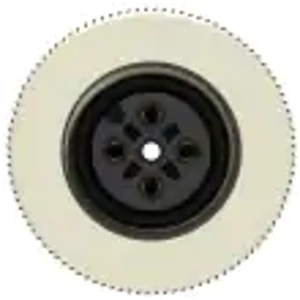

T4110001041-000 TE Connectivity Other Circular Connectors Image 2
T4110001041-000 TE Connectivity Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
9.6985 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
9.70 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6985 €
10 pcs.
8.9131 €
50 pcs.
8.0206 €
100 pcs.
7.2233 €
*incl. VAT plus shipping costs
Subject to prior sale

M12 connector, T4110001041-000, TE Connectivity

The T4110001041-000 is a M12 screw connection that continues to fill the ongoing needs for sensor connection in industrial machinery and factory automation. This product also finds applications outside of their traditional industries where a compact reliable connection system with environmental protection is required.

Features

  • Acutator-sensor plug connections for DeviceNet
  • IO link and profibus
  • Unshielded
  • Number of positions: 4
  • Sealable: Yes
  • Connector style: receptacle
Technical specifications
Cable diameter 4 to 6 mm
Type of locking screw locking
contact surface gold-plated
Assembly cable assembly
Contact connection screw connection
Cable cross-section 0.2-0.82 mm²
Pin number 4 pole
Version socket
Shell Material PA
Orientation straight
Logistics
Country of origin TW
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
