T4073014041-001 | TE Connectivity

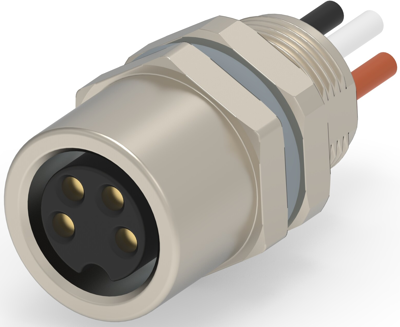

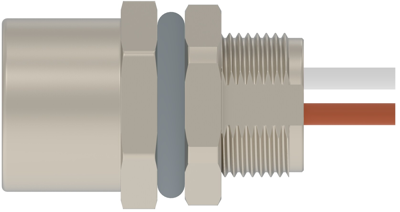

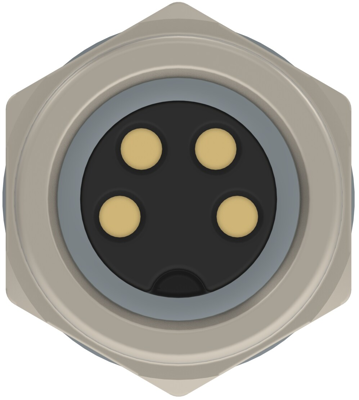

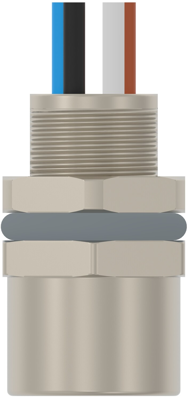

Circular connector, 4 pole, screw locking, straight, T4073014041-001
Unit Price (€ / pc.)
12.0785 € *
Available: 5 pcs.
Available in 5 Days: 180 pcs. - if ordered today
Total Price:
12.08 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0785 €
10 pcs.
11.2217 €
25 pcs.
10.4720 €
50 pcs.
9.5200 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, T4073014041-001, TE Connectivity
Standard circular connector, Wire-to-Board, 4 Position, Sealable, Wire & Cable, Signal, Nickel, Brass, A Polarization code.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Shell Material | PA | |
| Version | socket | |
| Assembly | panel mounting | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
