T4033014031-000 | TE Connectivity

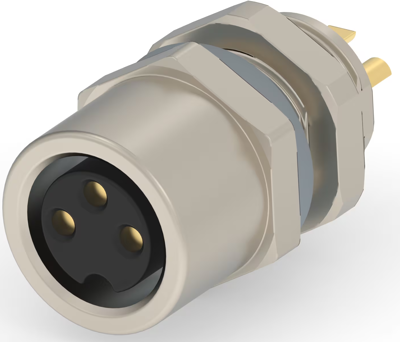

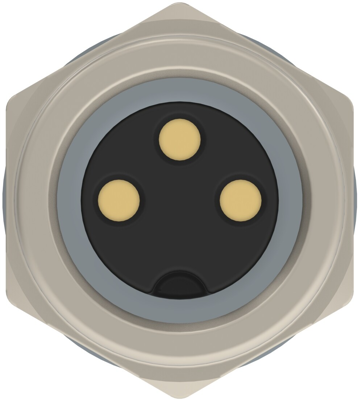

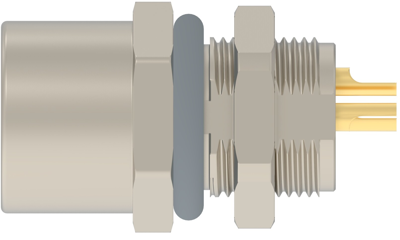

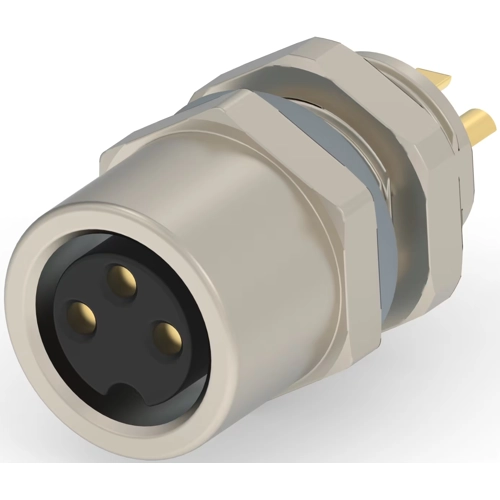

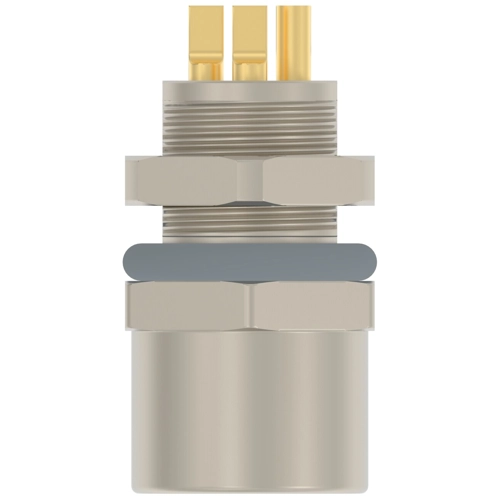

Circular connector, 3 pole, solder cup, screw locking, straight, T4033014031-000
Unit Price (€ / pc.)
10.3649 € *
Available in 5 Days: 187 pcs. - if ordered today
Total Price:
10.36 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3649 €
5 pcs.
9.8294 €
10 pcs.
9.1987 €
25 pcs.
8.3776 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, T4033014031-000, TE Connectivity
Standard circular connector, Wire-to-Board, 3 Position, Sealable, Wire & Cable, Signal, Nickel, Brass, A Polarization code.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | panel mounting | |
| Contact connection | solder cup | |
| Pin number | 3 pole | |
| Orientation | straight | |
| Shell Material | PA | |
| contact surface | gold-plated | |
| Version | socket | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
