T4013019031-000 | TE Connectivity

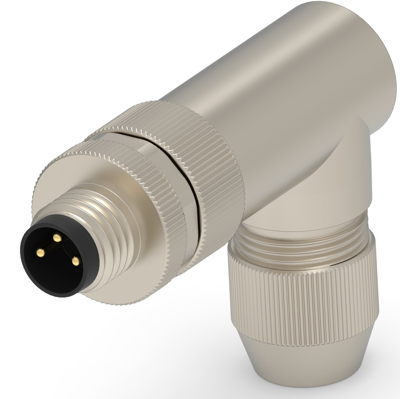

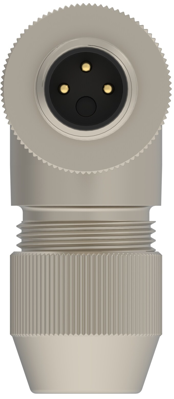

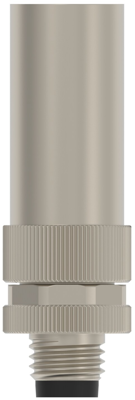

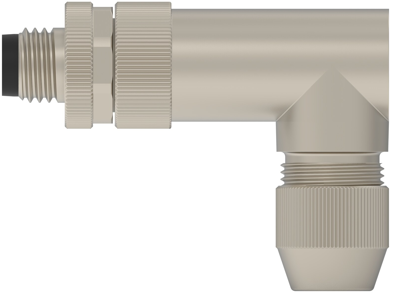

Circular connector, 3 pole, screw connection, screw locking, angled, T4013019031-000
Unit Price (€ / pc.)
18.5640 € *
Available in 5 Days: 260 pcs. - if ordered today
Total Price:
18.56 € *
Price list
Quantity
Price per unit*
1 pcs.
18.5640 €
10 pcs.
17.2312 €
25 pcs.
16.0888 €
50 pcs.
14.6251 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, T4013019031-000, TE Connectivity
Standard circular connector, Wire-to-Wire, 3 Position, Sealable, Wire & Cable, Signal, Brass, A Polarization code, Polyamide 66 GF25.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Contact connection | screw connection | |
| Cable cross-section | 0.14-0.25 mm² | |
| Pin number | 3 pole | |
| Version | plug | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
