6-2271122-2 | TE Connectivity

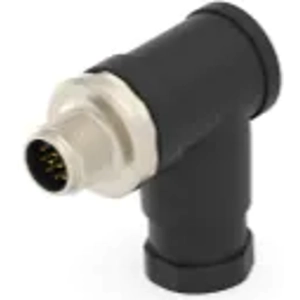

Plug, 12 pole, solder connection, screw locking, angled, 6-2271122-2
Order No.: 38P6448
EAN: 4099889720402
MPN:
6-2271122-2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
62.8201 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
62.82 € *
Price list
Quantity
Price per unit*
1 pcs.
62.8201 €
2 pcs.
58.7741 €
5 pcs.
55.2041 €
10 pcs.
51.3247 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 6-2271122-2, TE Connectivity
Product Type: Connector, Connector System: Wire-to-Board,Wire-to-Wire, Sealable: Yes, Circular Connector Type: Plug, Shell Type: Plastic, Number of Positions: 12, Number of Power Positions: 0, Number of Signal Positions: 12, Contacts Preloaded: Yes, Shell Base Material: PBT, Circular Connector Insulation Material Type: Polyamide 66 GF25, Reverse Gender: No, Contact Layout Arrangement: Circular, Circular Connector Contact Type: Pin, Polarization Code: A, Mating Alignment Type: Keyed, Mating Retention: With, Circular Connector Shell Size: 12, Wire Size: 0.25 mm², Wire Size: 24 AWG, IP Dust Sealing Level: 6, Shielded: No, Field Serviceable: Yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 0.25 mm² | |
| Pin number | 12 pole | |
| Orientation | angled | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Assembly | PCB mounting | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
