6-1437719-0 | TE Connectivity

Socket, 5 pole, solder connection, screw locking, angled, 6-1437719-0

Order No.: 38P6695
EAN: 4099889721690
MPN:
6-1437719-0

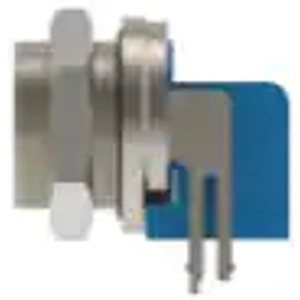

6-1437719-0 TE Connectivity Other Circular Connectors Image 1

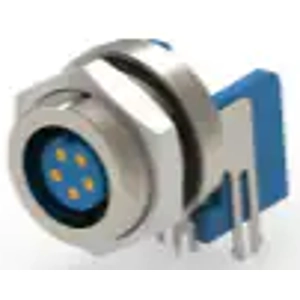

6-1437719-0 TE Connectivity Other Circular Connectors Image 2
6-1437719-0 TE Connectivity Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
39.0677 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1,718.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
44 pcs.
39.0677 €

standard circular connector, 6-1437719-0, TE Connectivity

Product Type: Connector, Connector System: Cable-to-Cable, Sealable: Yes, Circular Connector Type: Receptacle, Shell Type: Metal, Number of Positions: 5, Number of Power Positions: 0, Number of Signal Positions: 5, Contacts Preloaded: Yes, Operating Voltage: 60 VAC, Environmental Protection Type: Sealed, Shell Plating Material: Nickel, Shell Base Material: CuZn, Circular Connector Insulation Material Type: PBT, Hermetically Sealed: No, Contact Current Rating (Max): 3 A, Reverse Gender: Yes, Contact Layout Arrangement: Circular, Circular Connector Contact Type: Socket, Connector Mounting Type: Panel Mount, Mating Retention: With, Assembly Length: 19.2 mm, Operating Temperature Range: -40 – 80 °C, Circuit Application: Signal, Shielded: No, UL Flammability Rating: UL 94V-2, Packaging Quantity: 25

Technical specifications
Version socket
Assembly PCB mounting
Pin number 5 pole
Type of locking screw locking
Cable cross-section 0.25 mm²
Shell Material brass
Orientation angled
Additional parts equipped
Contact connection solder connection
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
