5-2271137-2 | TE Connectivity

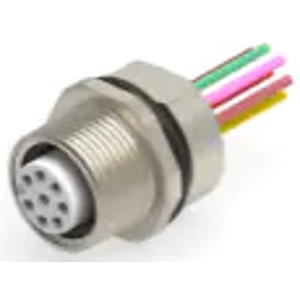

Socket, 8 pole, solder connection, quick locking, 5-2271137-2
Order No.: 38P6457
EAN: 4099889720464
MPN:
5-2271137-2
Unit Price (€ / pc.)
57.9411 € *
Available in 5 Days: 9 pcs. - if ordered today
Total Price:
57.94 € *
Price list
Quantity
Price per unit*
1 pcs.
57.9411 €
2 pcs.
54.2045 €
5 pcs.
50.9201 €
10 pcs.
47.3263 €
*incl. VAT plus shipping costs
Subject to prior sale
standard circular connector, 5-2271137-2, TE Connectivity
Assembly Requirement: Factory Assembled, Connector System: Wire-to-Wire, Sealable: Yes, Connector & Contact Terminates To: Printed Circuit Board, Circular Connector Type: Receptacle, Keying: A, Number of Positions: 8, Number of Power Positions: 0, Number of Signal Positions: 8, Contacts Preloaded: Yes, Circular Connector Insulation Material Type: PA, Hermetically Sealed: Yes, Contact Current Rating (Max): 2 A, Reverse Gender: Yes, Circular Connector Contact Type: Socket, Polarization Code: A, Mating Alignment Type: 1 Key, Mating Retention: With, Circular Connector Shell Size: 18, Wire Size: 24 – 22 AWG, Wire Size: .25 – .34 mm², Operating Temperature Range: -40 – 85 °C, Circuit Application: Signal, Shielded: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| Contact connection | solder connection | |
| Assembly | PCB mounting | |
| Version | socket | |
| Shell Material | brass | |
| Additional parts | equipped | |
| Type of locking | quick locking | |
| Pin number | 8 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
