4-2172083-2 | TE Connectivity

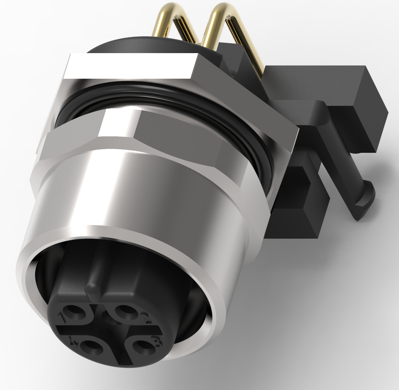

Socket, 5 pole, solder connection, screw locking, angled, 4-2172083-2
Order No.: 38P6498
EAN: 4099889720556
MPN:
4-2172083-2
Unit Price (€ / pc.)
13.5422 € *
Available in 5 Days: 118 pcs. - if ordered today
Total Price:
203.13 € *
Price list
Quantity
Price per unit*
15 pcs.
13.5422 €
40 pcs.
13.2923 €
*incl. VAT plus shipping costs
Subject to prior sale
standard circular connector, 4-2172083-2, TE Connectivity
Product Type: Connector, Connector System: Wire-to-Board, Sealable: Yes, Circular Connector Type: Receptacle, Shell Type: Metal, Number of Positions: 5, Number of Power Positions: 0, Number of Signal Positions: 5, Contacts Preloaded: Yes, Shell Plating Material: Nickel, Shell Base Material: Brass, Circular Connector Insulation Material Type: Polyamide, Contact Current Rating (Max): 4 A, Reverse Gender: Yes, Contact Layout Arrangement: Circular, Circular Connector Contact Type: Socket, Connector Mounting Type: Panel Mount, Polarization Code: B, Mating Alignment Type: Keyed, Mating Retention: With, Circular Connector Shell Size: 12, IP Dust Sealing Level: 6, Operating Temperature Range: -40 – 80 °C, Circuit Application: Signal, Shielded: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Shell Material | brass | |
| Version | socket | |
| Assembly | PCB mounting | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Orientation | angled | |
| Type of locking | screw locking | |
| Contact connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
