4-2172070-2 | TE Connectivity

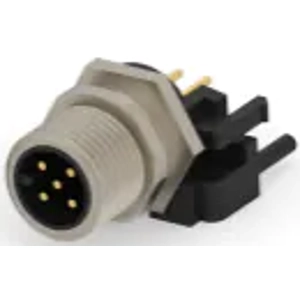

Plug, 5 pole, solder connection, screw locking, angled, 4-2172070-2
Order No.: 38P6540
EAN: 4099889720617
MPN:
4-2172070-2
Unit Price (€ / pc.)
16.6481 € *
Standard delivery time from the manufacturer is: 39 Weeks
standard circular connector, 4-2172070-2, TE Connectivity
Product Type: Connector, Connector System: Wire-to-Board, Sealable: Yes, Circular Connector Type: Plug, Shell Type: Metal, Number of Positions: 5, Number of Power Positions: 0, Number of Signal Positions: 5, Contacts Preloaded: Yes, Shell Plating Material: Nickel, Shell Base Material: Brass, Circular Connector Insulation Material Type: Polyamide, Contact Current Rating (Max): 4 A, Reverse Gender: Yes, Contact Layout Arrangement: Circular, Circular Connector Contact Type: Pin, Connector Mounting Type: Panel Mount, Polarization Code: A, Mating Alignment Type: Keyed, Mating Retention: With, Circular Connector Shell Size: 12, IP Dust Sealing Level: 6, Operating Temperature Range: -40 – 80 °C, Circuit Application: Signal, Shielded: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | PCB mounting | |
| Version | plug | |
| Type of locking | screw locking | |
| Contact connection | solder connection | |
| Pin number | 5 pole | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | brass | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
