1838277-4 | TE Connectivity

Plug, 8 pole, solder cup, screw locking, straight, 1838277-4

Order No.: 38P6583
EAN: 4099889720815
MPN:
1838277-4

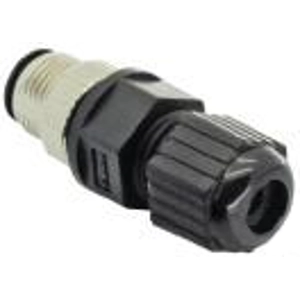

1838277-4 TE Connectivity Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
11.2217 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
22,443.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
11.2217 €

Plug, 1838277-4, TE Connectivity

Product Type: Connector, Connector System: Cable-to-Cable, Sealable: Yes, Connector & Contact Terminates To: Wire & Cable, Circular Connector Type: Plug, Factory Installed Backshell: Without, Number of Positions: 8, Number of Power Positions: 0, Number of Signal Positions: 8, Contacts Preloaded: Yes, Operating Voltage: 500 VAC, Environmental Protection Type: Sealed, Shell Plating Material: Nickel, Shell Base Material: CuZn, Circular Connector Insulation Material Type: Polyamide, Contact Current Rating (Max): 2 A, Reverse Gender: Yes, Contact Layout Arrangement: Circular, Circular Connector Contact Type: Pin, Polarization Code: A, Mating Alignment Type: Keyed, Mating Retention: With, Wire Size: 0.25 mm², Wire Size: 24 AWG, Operating Temperature Range: -25 – 90 °C, Circuit Application: Signal, Shielded: No, Packaging Quantity: 20, Field Serviceable: Yes

Technical specifications
Cable diameter 4.5 to 6.5 mm
Type of locking screw locking
Assembly PCB mounting
Contact connection solder cup
Cable cross-section 0.25 mm²
Pin number 8 pole
Version plug
Additional parts equipped
Shell Material PA
Orientation straight
Logistics
Country of origin JP
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
