1445817-1 | TE Connectivity

Name: Circular connector, 8 pole, crimp connection, bayonet locking, straight, 1445817-1
Brand: TE Connectivity
SKU: 71P2148
Availability: InStock

Circular connector, 8 pole, crimp connection, bayonet locking, straight, 1445817-1

Order No.: 71P2148

EAN: 4099891707040

MPN:

1445817-1

Series: CPC

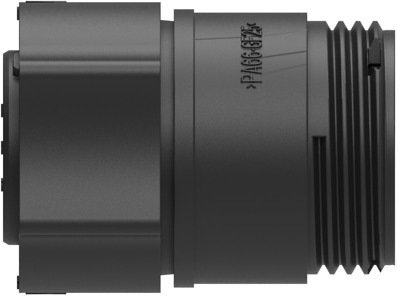

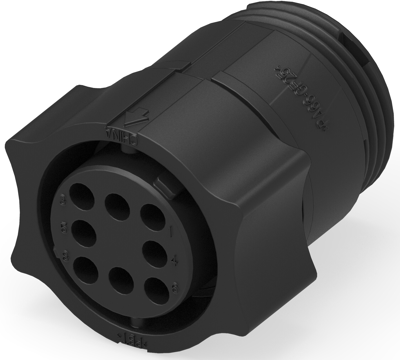

1445817-1 TE Connectivity Other Circular Connectors Image 2

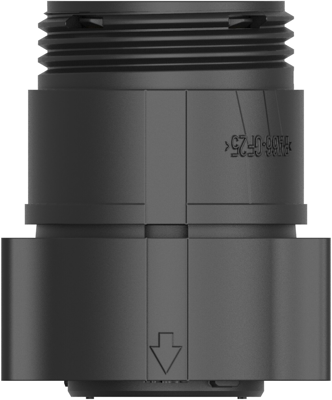

1445817-1 TE Connectivity Other Circular Connectors Image 3

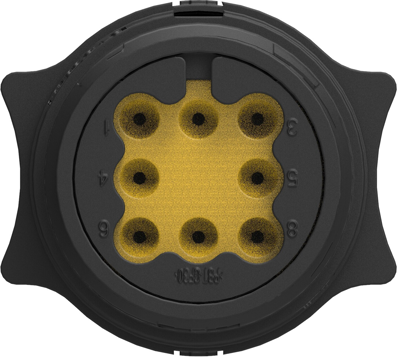

1445817-1 TE Connectivity Other Circular Connectors Image 4

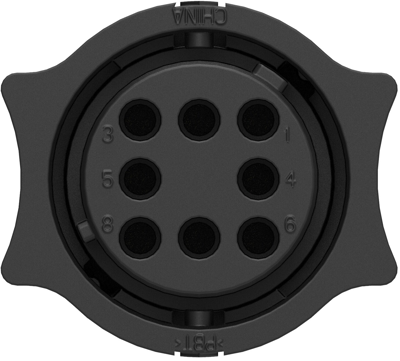

1445817-1 TE Connectivity Other Circular Connectors Image 5

Image may differ

Key Specification:

Version plug

Cable cross-section 0.509-0.823 mm²

Pin number 8 pole

Orientation straight

Contact connection crimp connection

Download Datasheet Technical specifications

Unit Price (€ / pc.)

7.5089 € *

Available in 5 Days: 5,750 pcs. - if ordered today

Total Price:

7.51 € *

Price list

Quantity

Price per unit*

1 pcs.

7.5089 €

5 pcs.

7.1162 €

10 pcs.

6.6640 €

25 pcs.

6.0690 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Plug housing, 1445817-1, TE Connectivity

Circular power connector, Housing, 250 VDC, 30-18 AWG Wire size, 0.0509-0.823 mm² Wire size, Wire-to-Wire, 8 Position, Sealable.

Technical specifications

Filter	Property	Value
	Cable cross-section	0.509-0.823 mm²
	Shell Material	thermoplastic
	Type of locking	bayonet locking
	Version	plug
	Pin number	8 pole
	Orientation	straight
	Assembly	cable assembly
	Contact connection	crimp connection
	Cable diameter	0.89 to 1.5 mm
