1-2823449-6 | TE Connectivity

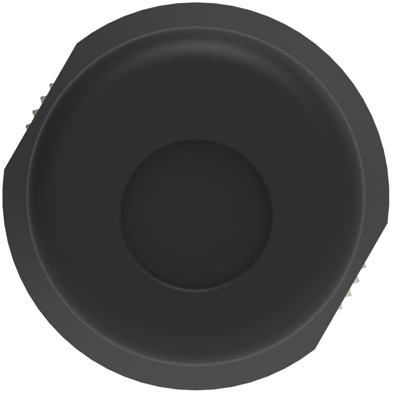

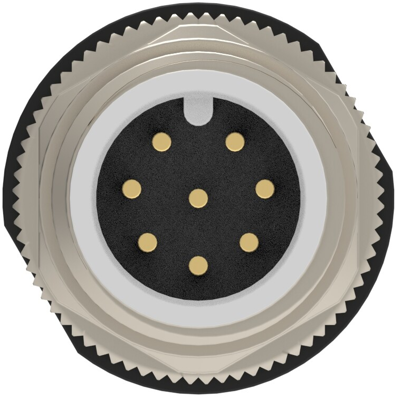

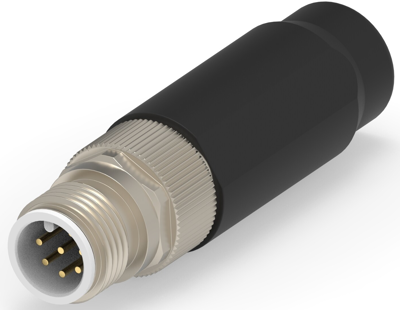

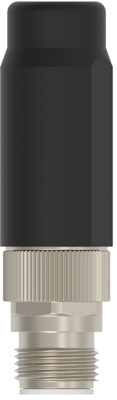

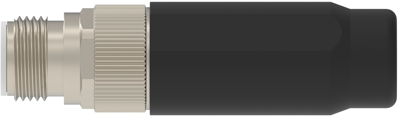

Circular connector, 8 pole, crimp connection, straight, 1-2823449-6
Order No.: 71P1728
EAN: 4099891706852
MPN:
1-2823449-6
Unit Price (€ / pc.)
71.6975 € *
Available: 0 pcs.
Available in 5 Days: 378 pcs.
Leadtime: 16 Weeks **
Total Price:
71.70 € *
Price list
Quantity
Price per unit*
1 pcs.
71.6975 €
5 pcs.
68.1156 €
10 pcs.
64.0220 €
25 pcs.
59.5476 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, 1-2823449-6, TE Connectivity
The 1-2823449-6 is a cable connector for field assembly. 360° EMI/RFI shielding, torsion and vibration proof cable strain relief with our crimp flange technology and machined crimp contacts.
Features
- Compact dimensions
- Assembly with locking against rotation due to flange contour for housing
Technical specifications
| Cable diameter | 8.4 mm | |
| contact surface | nickel-plated | |
| Assembly | cable assembly | |
| Contact connection | crimp connection | |
| Pin number | 8 pole | |
| Version | plug | |
| Shell Material | thermoplastic | |
| Orientation | straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
