1-2823448-2 | TE Connectivity

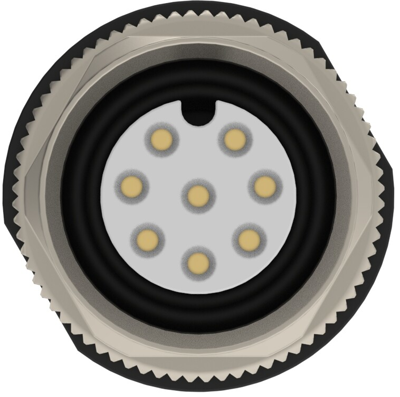

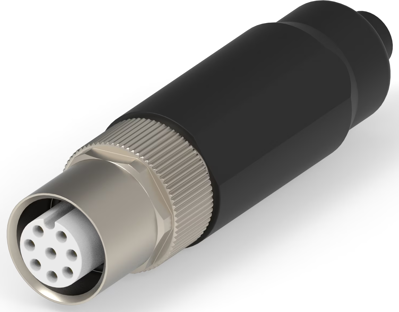

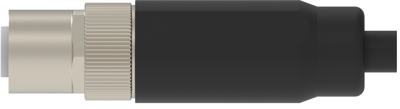

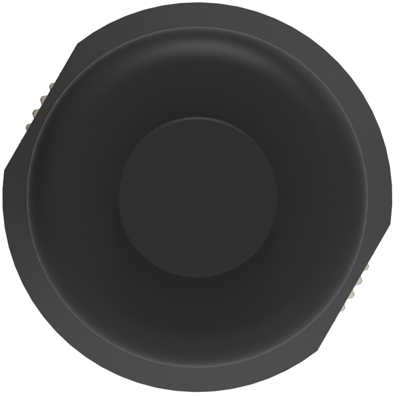

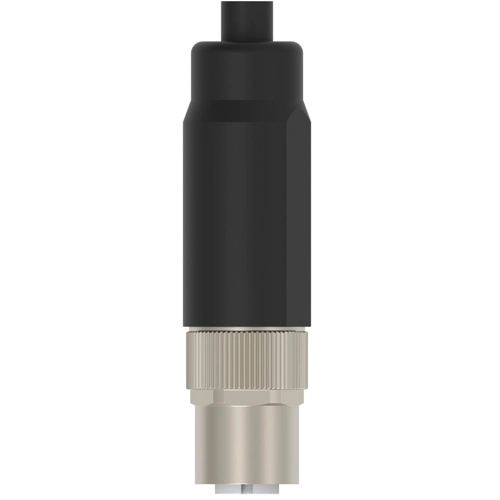

Circular connector, 8 pole, crimp connection, screw locking, straight, 1-2823448-2
Order No.: 71P1722
EAN: 4099891706791
MPN:
1-2823448-2
Unit Price (€ / pc.)
76.7550 € *
Available: 0 pcs.
Available in 5 Days: 47 pcs.
Leadtime: 16 Weeks **
Total Price:
76.76 € *
Price list
Quantity
Price per unit*
1 pcs.
76.7550 €
5 pcs.
72.9232 €
10 pcs.
68.5440 €
25 pcs.
63.7483 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, 1-2823448-2, TE Connectivity
The 1-2823448-2 is a cable connector for field assembly. 360° EMI/RFI shielding, torsion and vibration proof cable strain relief with our crimp flange technology and machined crimp contacts.
Features
- Compact dimensions
- Assembly with locking against rotation due to flange contour for housing
Technical specifications
| Cable diameter | 8.8 mm | |
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Contact connection | crimp connection | |
| Pin number | 8 pole | |
| Version | socket | |
| Shell Material | thermoplastic | |
| Orientation | straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
