1-2823446-1 | TE Connectivity

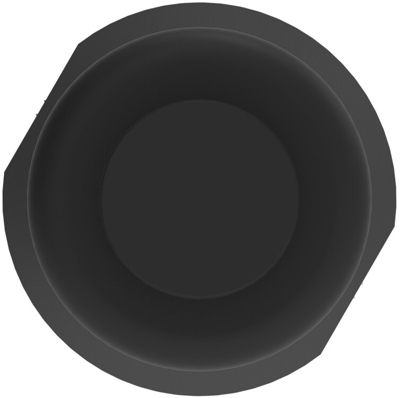

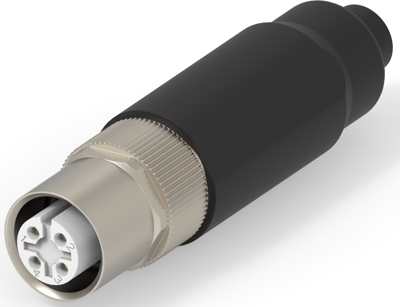

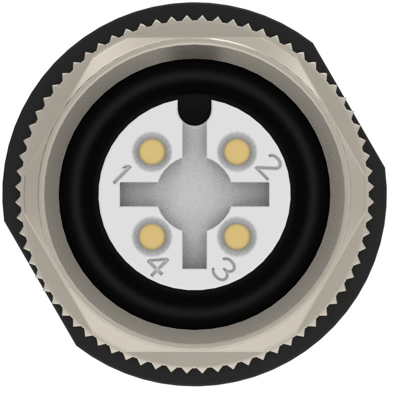

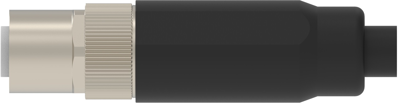

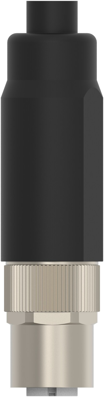

Circular connector, 4 pole, crimp connection, screw locking, straight, 1-2823446-1
Order No.: 71P1709
EAN: 4099891706661
MPN:
1-2823446-1
Unit Price (€ / pc.)
132.0900 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
132.09 € *
Price list
Quantity
Price per unit*
1 pcs.
132.0900 €
2 pcs.
125.9972 €
5 pcs.
120.4399 €
10 pcs.
112.1813 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, 1-2823446-1, TE Connectivity
The 1-2823446-1 is a cable connector for field assembly. 360° EMI/RFI shielding, torsion and vibration proof cable strain relief with our crimp flange technology and machined crimp contacts.
Features
- Compact dimensions
- Assembly with locking against rotation due to flange contour for housing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Assembly | cable assembly | |
| Pin number | 4 pole | |
| Version | socket | |
| Contact connection | crimp connection | |
| Cable diameter | 6.6 mm | |
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Shell Material | copper zinc alloy |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
