1-2315715-2 | TE Connectivity

Circular connector, 8 pole, crimp connection, screw locking, straight, 1-2315715-2

Order No.: 71P1547
EAN: 4099891706593
MPN:
1-2315715-2
Series: M12 X-Coded

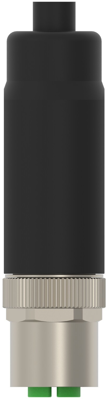

1-2315715-2 TE Connectivity Other Circular Connectors Image 1

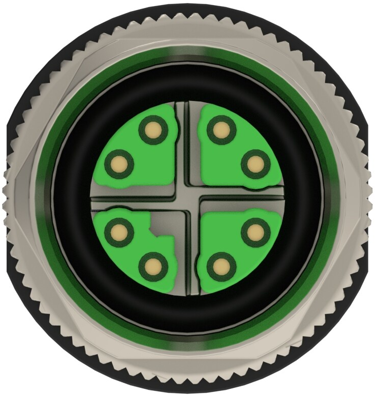

1-2315715-2 TE Connectivity Other Circular Connectors Image 2

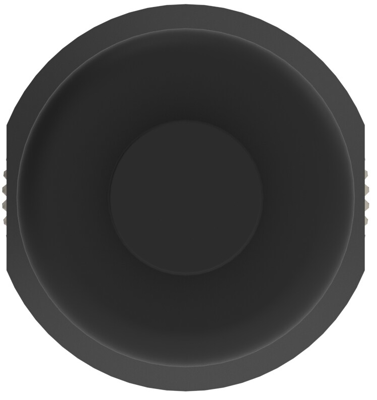

1-2315715-2 TE Connectivity Other Circular Connectors Image 3

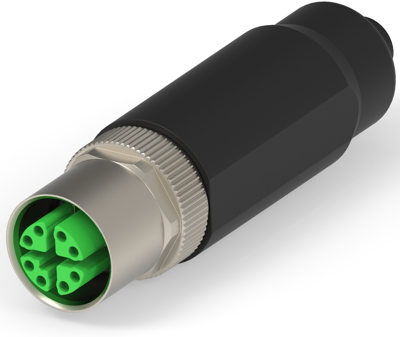

1-2315715-2 TE Connectivity Other Circular Connectors Image 4

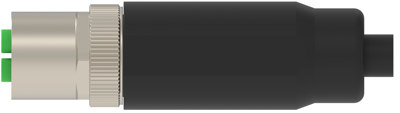

1-2315715-2 TE Connectivity Other Circular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
229.2178 € *
Available: 0 pcs.
Available in 5 Days: 149 pcs.
Leadtime: 16 Weeks **
Total Price:
229.22 € *
Price list
Quantity
Price per unit*
1 pcs.
229.2178 €
3 pcs.
225.2670 €
*incl. VAT plus shipping costs
**Subject to prior sale

Railway connector, 1-2315715-2, TE Connectivity

The 1-2315715-2 is a railway connector that ensures the best possible data transmission speed while the machined, gold plated crimp contacts and unique torsion free jacket crimping system guarantees uninterrupted service throughout the connector lifetime. It has crimp flange inserted under the braiding that provides 360° EMI/RFI shielding to connector tip.

Features

  • Connector Booth, protects connector
  • Crimp barrel
  • Shielding insert
  • 4x Contact holder for easy field assembly
  • Solid machined connector tip
  • Turned contacts for high vibration environments
Technical specifications
Cable diameter 8.4 mm
Type of locking screw locking
contact surface gold-plated
Assembly cable assembly
Contact connection crimp connection
Pin number 8 pole
Version socket
Shell Material PA
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
