1-2308336-1 | TE Connectivity

Circular connector, 4 pole, crimp connection, screw locking, straight, 1-2308336-1

Order No.: 71P1519
EAN: 4099891706517
MPN:
1-2308336-1

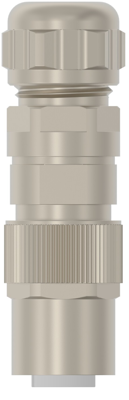

1-2308336-1 TE Connectivity Other Circular Connectors Image 1

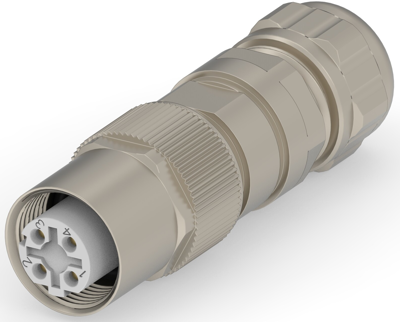

1-2308336-1 TE Connectivity Other Circular Connectors Image 2

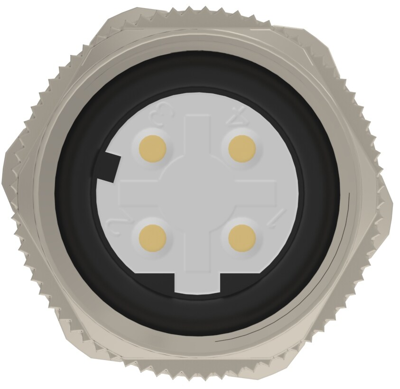

1-2308336-1 TE Connectivity Other Circular Connectors Image 3

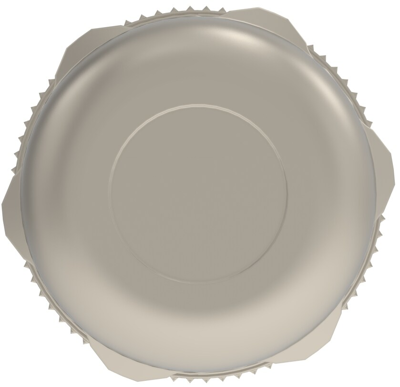

1-2308336-1 TE Connectivity Other Circular Connectors Image 4

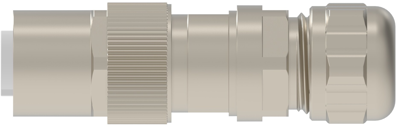

1-2308336-1 TE Connectivity Other Circular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
70.2695 € *
Available in 5 Days: 76 pcs. - if ordered today
Total Price:
70.27 € *
Price list
Quantity
Price per unit*
1 pcs.
70.2695 €
5 pcs.
66.0569 €
10 pcs.
61.4278 €
25 pcs.
56.5131 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, 1-2308336-1, TE Connectivity

Standard circular connector, Cable-to-Cable, 4 Position, Sealable, Wire & Cable, Signal, Cable mount (Free-Hanging), Nickel, Brass.

Features

  • Compact dimensions
  • Assembly with locking against rotation due to flange contour for housing
Technical specifications
Cable diameter 4 to 6.5 mm
Type of locking screw locking
contact surface gold-plated
Assembly cable assembly
Contact connection crimp connection
Pin number 4 pole
Version socket
Shell Material PA
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
