1987236-3 | TE Connectivity

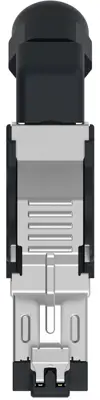

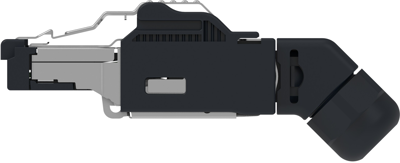

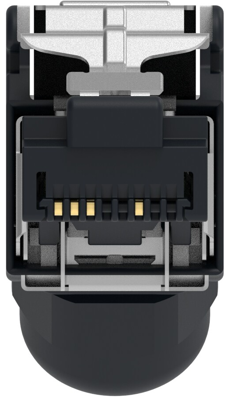

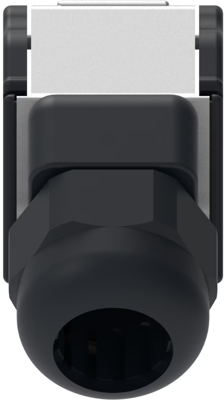

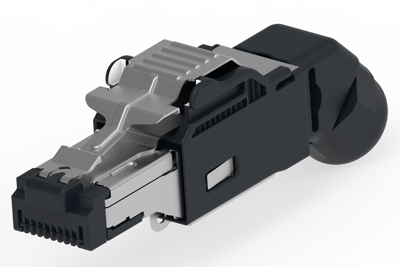

Plug, RJ45, 8 pole, 8P8C, Cat 5e, IDC connection, 1987236-3
Order No.: 38P6340
EAN: 4099889821253
MPN:
1987236-3
Unit Price (€ / pc.)
42.2807 € *
Standard delivery time from the manufacturer is: 34 Weeks
RJ45-plug, 1987236-3, TE Connectivity
Connector & connector components type: connector, Modular jacks & plugs products: RJ type jacks & plugs, Modular connector style: Plug, Connector system: wire-to-wire, Connector & contact terminates to: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Connector contact density: Standard, Number of positions: 8, Shield material: Copper Alloy, Contact base material: Copper Alloy, Contact current rating (Max): 0.5 A, Connector mounting type: Panel mount, Housing material: Polycarbonate GF, Wire Size: 0.12 mm², 0.12 -0.15 mm², Operating temperature range: -40-70 °C, Shielded: No, Yes, Circuit application: Signal, IP Rating: IP20, Performance category: Cat 5e, Packaging method: Box, Packaging quantity: 50, Cable Entry: 45°
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| RJ-Version | RJ45 | |
| Pin number | 8 pole | |
| Pole image | 8P8C | |
| Category | Cat 5e | |
| Connection | IDC connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369001 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
