1903527-1 | TE Connectivity

Plug, RJ45, 8 pole, 8P8C, IDC connection, 1903527-1

Order No.: 38P6333
EAN: 4099889821246
MPN:
1903527-1

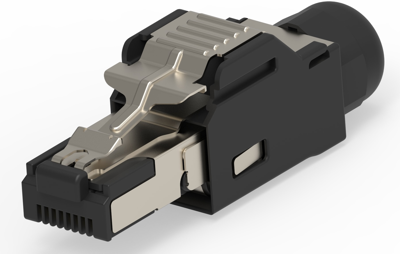

1903527-1 TE Connectivity Modular Connectors Image 1

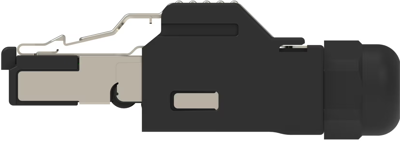

1903527-1 TE Connectivity Modular Connectors Image 2

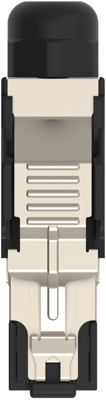

1903527-1 TE Connectivity Modular Connectors Image 3

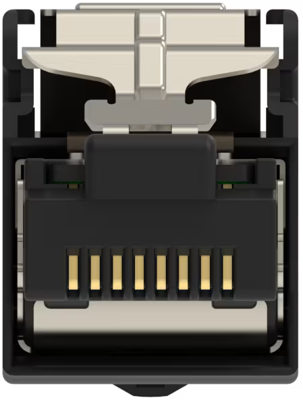

1903527-1 TE Connectivity Modular Connectors Image 4
1903527-1 TE Connectivity Modular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
31.8920 € *
Available: 0 pcs.
Available in 5 Days: 1,603 pcs.
Leadtime: 24 Weeks **
Total Price:
31.89 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
31.8920 €

Circular RJ45 connector, 1903527-1, TE Connectivity

Connector & connector components type: connector, Modular jacks & plugs products: RJ type jacks & plugs, Modular connector style: Plug, Connector system: wire-to-wire, Connector & contact terminates to: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Connector contact density: Standard, Number of positions: 8, Case Material: Polycarbonate, Contact base material: Copper Alloy, Contact current rating (Max): 0.5 A, Connector mounting type: Panel mount, Housing material: Nylon, Polycarbonate, Wire Size: 0.12-0.15 mm², 0.129 mm², Operating temperature range: -40-70 °C, Shielded: Yes, Circuit application: Signal, IP Rating: IP20, Performance category: Cat 5e, Packaging method: Box & tray, tray, Packaging quantity: 1, Cable Entry: Straight

Technical specifications
Connection Schneidklemmanschluss
Version Stecker
Pole image 8P8C
Pin number 8-polig
RJ-Version RJ45
Logistics
Country of origin MX
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
