1776186-1 | TE Connectivity
Socket, RJ45, 8 pole, 8P8C, Cat 5e, PCB mounting, 1776186-1
Unit Price (€ / pc.)
126.4851 € *
Available in 5 Days: 1,052 pcs. - if ordered today

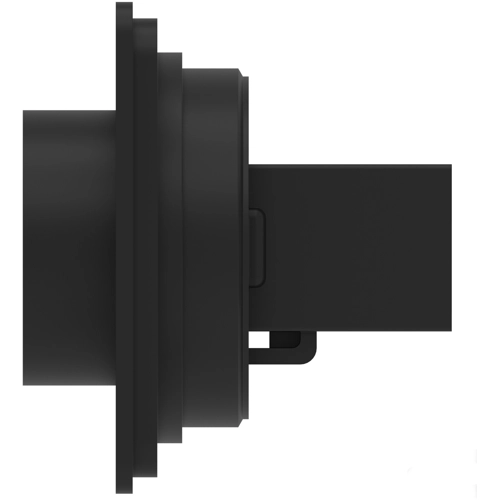

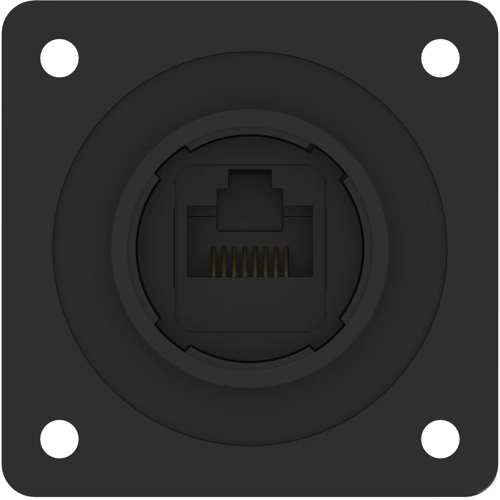

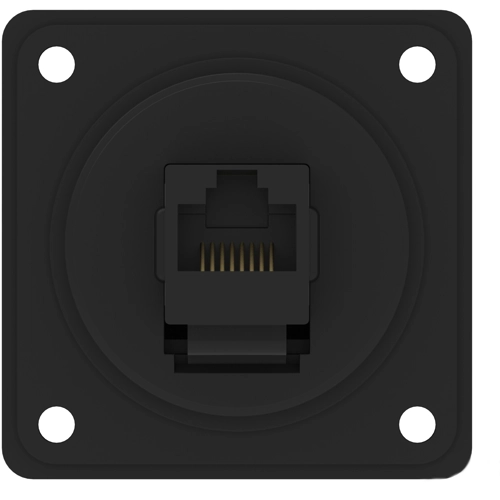

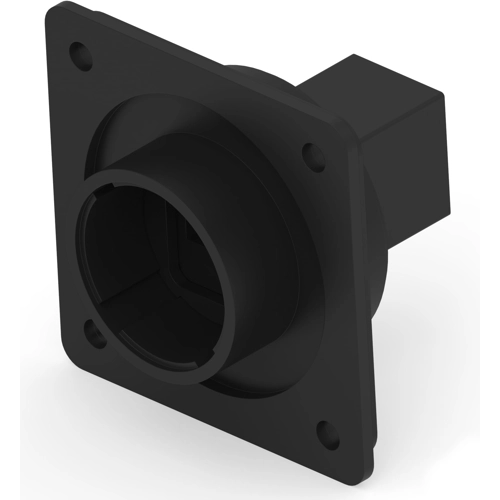

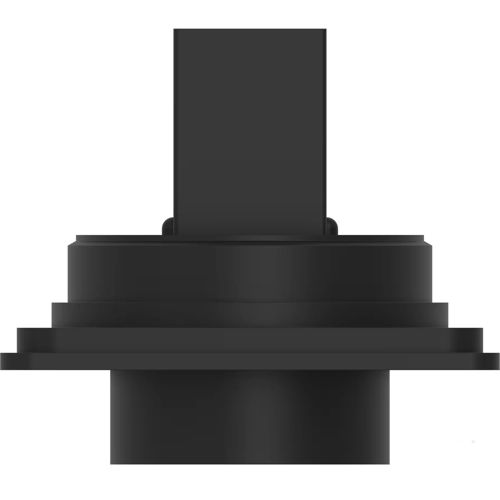

Circular RJ45 connector, 1776186-1, TE Connectivity
Connector & connector components type: connector, Modular jacks & plugs products: RJ type jacks & plugs, Modular connector style: receptacle, Connector system: wire-to-wire, Sealable: Yes, Compatible With Wire & Cable Type: Discrete Wire, Connector contact density: Standard, Number of positions: 1, Contact current rating (Max): 1.5 A, Wire Termination: No, Connector mounting type: Cable Mount (Free-Hanging), Housing material: 6/6 Nylon, Operating temperature range: -40-85 °C, Shielded: No, Circuit application: Power, Signal & Data, UL flammability rating: UL 94V-0, Performance category: Cat 5, Packaging method: Bag, Packaging quantity: 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| RJ-Version | RJ45 | |
| Pin number | 8 pole | |
| Pole image | 8P8C | |
| Category | Cat 5e | |
| Assembly | PCB mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
