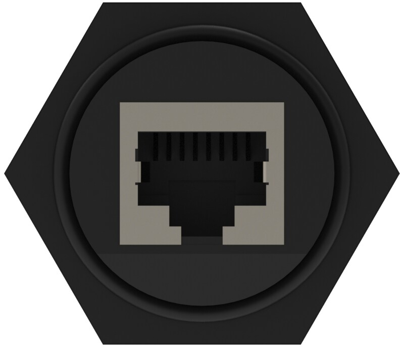

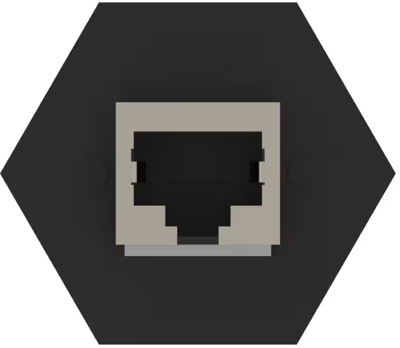

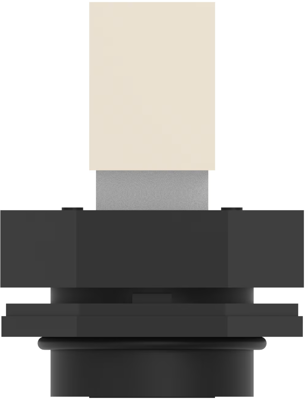

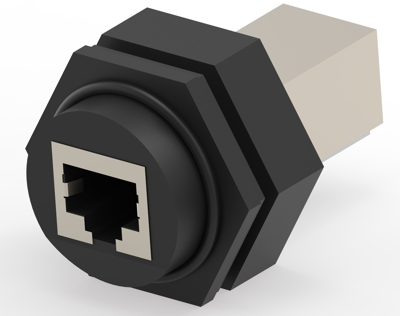

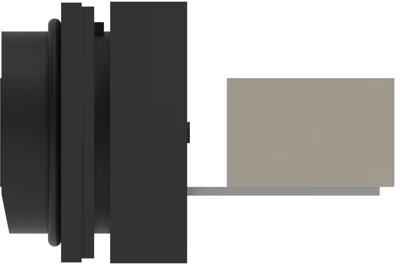

Circular RJ45 connector, 1546413-3, TE Connectivity
Connector & connector components type: connector, Modular jacks & plugs products: RJ type jacks & plugs, Modular connector style: receptacle, Connector system: wire-to-wire, Compatible With Discrete Wire Type: Solid, Stranded, Connector contact density: Standard, Number of positions: 8, Seal Material: Vition Rubber, Contact mating area plating material: Gold over Nickel, Contact current rating (Max): 1.5 A, Screw & hole thread Ssze: 1-14, Connector mounting type: Panel mount, Housing material: Acrylonitrile-Butadiene-Styrene(ABS), Operating temperature range: -20-80 °C, Shielded: Yes, Circuit application: Signal, Performance category: Cat 5e, Packaging method: Package, Packaging quantity: 1, Coupling nut base material: Acrylonitrile-Butadiene-Styrene (ABS)
