1-1705949-1 | TE Connectivity

Socket, RJ9/RJ10/RJ22, 4 pole, 4P4C, Cat 3, solder connection, through hole, 1-1705949-1

Order No.: 37P3153
EAN: 4099889820577
MPN:
1-1705949-1

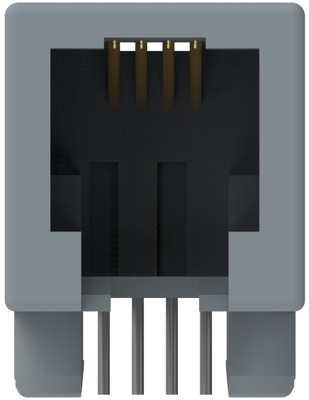

1-1705949-1 TE Connectivity Modular Connectors Image 1

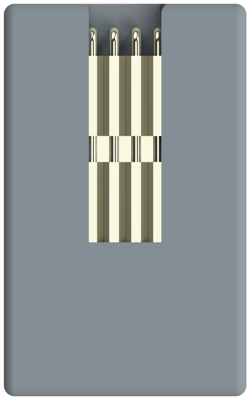

1-1705949-1 TE Connectivity Modular Connectors Image 2

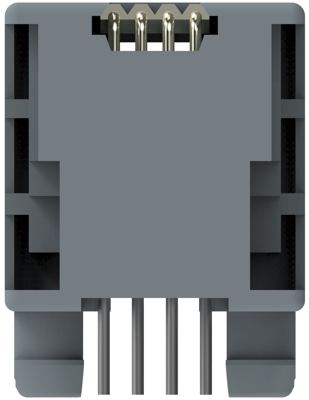

1-1705949-1 TE Connectivity Modular Connectors Image 3

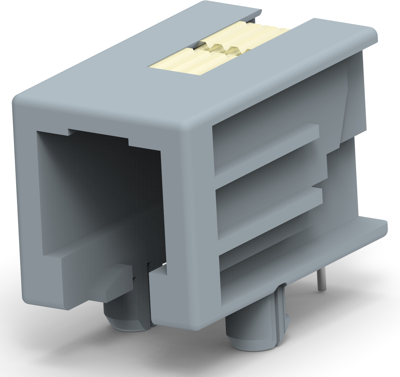

1-1705949-1 TE Connectivity Modular Connectors Image 4

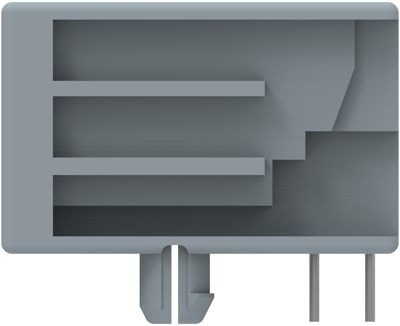

1-1705949-1 TE Connectivity Modular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.8449 € *
Available in 5 Days: 21,787 pcs. - if ordered today
Total Price:
0.84 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8449 €
10 pcs.
0.7735 €
50 pcs.
0.7259 €
100 pcs.
0.6545 €
*incl. VAT plus shipping costs
Subject to prior sale

RJ22 Connector, 1-1705949-1, TE Connectivity

Connector & connector components type: connector, Modular jacks & plugs products: RJ type jacks & plugs, Modular connector style: Jack, Connector system: Cable-to-board, Connector & contact terminates to: printed circuit board, Port configuration: Single port, Port matrix configuration: 1x1, Connector contact density: Standard, PCB mount orientation: Right Angle, Number of positions: 4, Connector profile: Low, Modular jack latch orientation: Standard - latch down, Contact base material: Phosphor bronze, Contact mating area plating material: Gold Flash, Contact current rating (Max): 1.5 A, PCB contact termination area plating material: Tin, Termination method to printed circuit board: Through hole - solder, Panel mount Feature Type: Panel Stops, Panel mount feature: Without, Connector mounting type: Board mount, Housing color: Black, Mating entry location: Side, Housing material: PBT GF, Centerline (Pitch): 1.02 mm, Connector height: 11.5 mm, PCB thickness (recommended): 1.6 mm, Operating temperature range: -40-70 °C, Shielded: No, Circuit application: Signal, Performance category: Cat 3, UL flammability rating: UL 94V-0, Packaging method: Box & Tray, Loose Piece, Tray, Packaging quantity: 290

Technical specifications
RJ-Version RJ9/RJ10/RJ22
Category Cat 3
Connection solder connection
Pin number 4 pole
Version socket
Assembly through hole
Pole image 4P4C
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
