2106431-2 | TE Connectivity

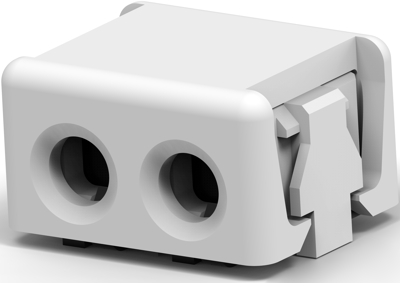

Solid State IDC SSL 2 pol. ge, 2106431-2
Order No.: 55F2017
EAN: 4099891024598
MPN:
2106431-2
0-2106431-2
Unit Price (€ / pc.)
0.8806 € *
Available in 5 Days: 1,800 pcs. - if ordered today
Total Price:
4.40 € *
Price list
Quantity
Price per unit*
5 pcs.
0.8806 €
10 pcs.
0.8211 €
25 pcs.
0.7616 €
50 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale

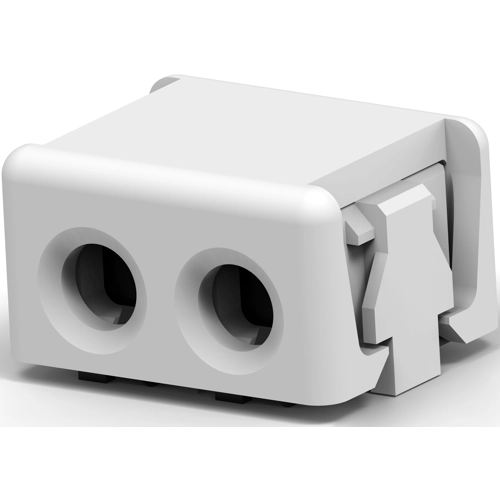

LED connector, 2106431-2, TE
IDC Poke-In Wire connector is a insulation displacement (IDC) connector that is available in surface mount and thru-hole for Wire-to-Board connectivity. This connector is designed for quick, tool-less termination of discrete solid and stranded wire leads to metal clad boards used in LED applications and FR4 boards used in thru-hole non-LED lighting applications. This connector uses TE Connectivity (TE) proven insulation displacement technology to prove a robust, stable electrical and mechanical power connection to single or multiple printed circuit boards.
Features
- Integral cover provides wire entry location and when fully seated wire leads are secured in dual IDC slots ensures electrical connections
- Wire placement viewing window and wire gauge color coded housings assist in error free assembly
- Integral cover provides a robust, mechanical strain relieved connection in high vibration applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole | |
| Grid | 4 mm | |
| Connection | SMD | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Rated voltage (DC) | 400 V | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
