2-2325811-1 | TE Connectivity

LED Connector, 2-2325811-1

Order No.: 71P6010
EAN: 4099891625474
MPN:
2-2325811-1

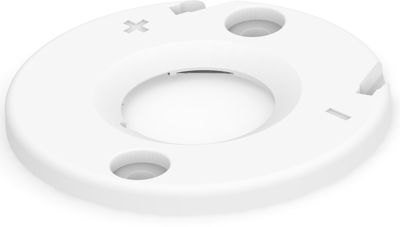

2-2325811-1 TE Connectivity LED Connectors Image 1
2-2325811-1 TE Connectivity LED Connectors Image 2

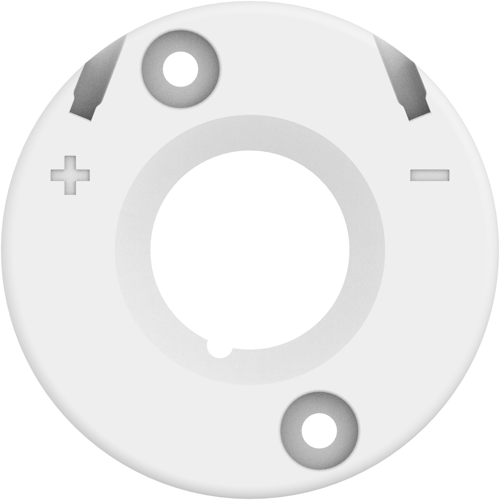

2-2325811-1 TE Connectivity LED Connectors Image 3
2-2325811-1 TE Connectivity LED Connectors Image 4
2-2325811-1 TE Connectivity LED Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.3562 € *
Available in 5 Days: 1,280 pcs. - if ordered today
Total Price:
11.78 € *
Price list
Quantity
Price per unit*
5 pcs.
2.3562 €
10 pcs.
2.1777 €
25 pcs.
2.0349 €
50 pcs.
1.8445 €
*incl. VAT plus shipping costs
Subject to prior sale

LED Connector, 2-2325811-1, TE Connectivity

The 2-2325811-1 provides a reliable electrical and mechanical connection for a light fixture’s power source, heat sink and reflector.

Features

  • Quick and easy assembly of the COB LEDs into the luminaire
  • Fast and easy termination

Applications

  • Spot Lights
  • General lighting
  • Downlights
  • Horticultural Lighting
Technical specifications
Filter Property Value
Pin number 1 pole
Grid 35 mm
Connection Poke-In connection
Orientation straight
contact surface gold-plated
Rated voltage (DC) 60 V
Rated current 3 A
Logistics
Property Value
Country of origin TW
Customs tariff number 85414100
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
