1-2325811-2 | TE Connectivity
LED Connector, 1-2325811-2
Order No.: 71P1624
EAN: 4099891625269
MPN:
1-2325811-2
Unit Price (€ / pc.)
2.3800 € *
Available in 5 Days: 6,220 pcs. - if ordered today
Total Price:
11.90 € *
Price list
Quantity
Price per unit*
5 pcs.
2.3800 €
10 pcs.
2.2015 €
25 pcs.
2.0468 €
50 pcs.
1.8564 €
*incl. VAT plus shipping costs
Subject to prior sale

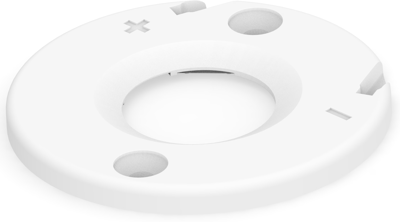

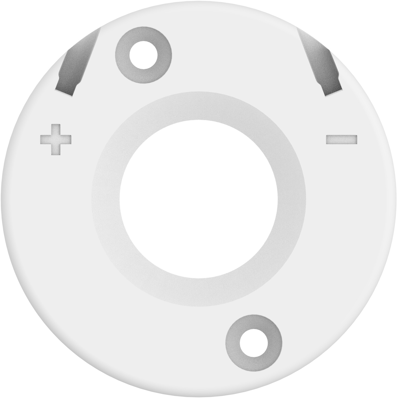

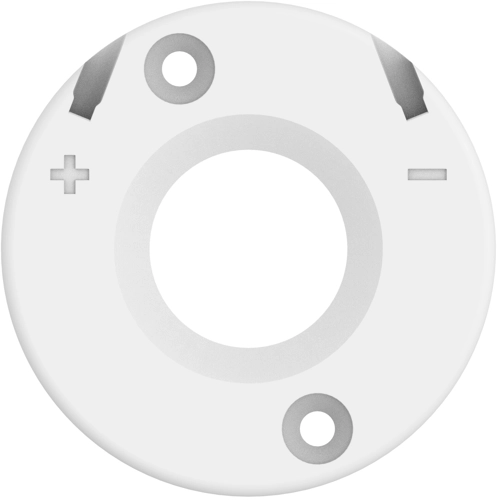

LED Connector, 1-2325811-2, TE Connectivity
The 1-2325811-2 is a LED holder that uses a high strength, highly reflective and halogen free housing material.
Features
- Quick and easy assembly of the COB LEDs into the luminaire
Applications
- Spot Lights
- General Lighting
- Downlights
- Horticultural Lighting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 1 pole | |
| Grid | 35 mm | |
| Connection | Poke-In connection | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Rated voltage (DC) | 60 V | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366110 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
