1-2325807-3 | TE Connectivity
LED Connector, 1-2325807-3
Order No.: 71P1623
EAN: 4099891625252
MPN:
1-2325807-3
Unit Price (€ / pc.)
2.4752 € *
Available: 0 pcs.
Available in 5 Days: 9,780 pcs.
Leadtime: 20 Weeks **
Total Price:
2.48 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4752 €
10 pcs.
2.2848 €
50 pcs.
2.0587 €
100 pcs.
1.8445 €
*incl. VAT plus shipping costs
**Subject to prior sale

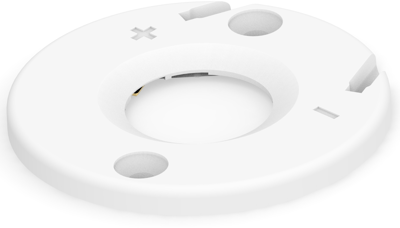

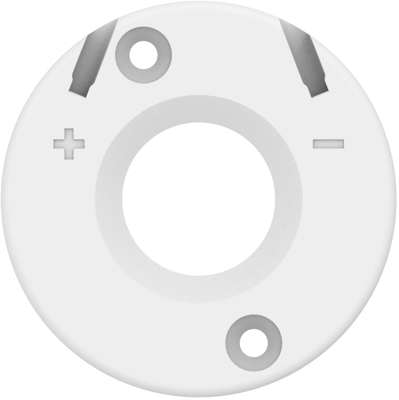

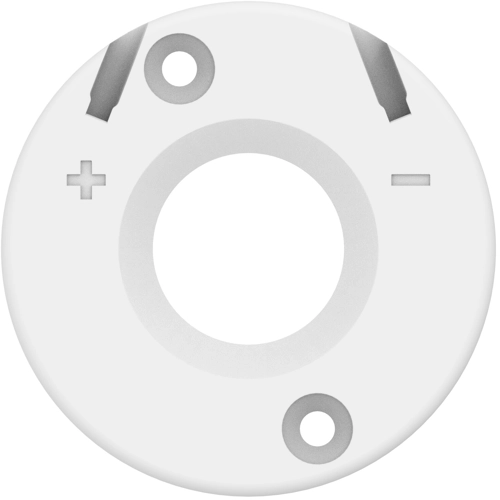

LED Connector, 1-2325807-3, TE Connectivity
The 1-2325807-3 is a led holder using a high strength, highly reflective and halogen free housing material. Quick and easy assembly of the COB LEDs in the luminaire.
Features
- Low profile
- Poke-in contact
- LED-clamping
- Distribution of pressure from LED across the heatsink
Applications
- Spot Lights
- General Lighting
- Downlights
- Horticultural Lighting
Technical specifications
| Pin number | 1-polig | |
| Grid | 35 mm | |
| Connection | Poke-In-Anschluss | |
| Orientation | gerade | |
| contact surface | vergoldet | |
| Rated voltage (DC) | 60 V | |
| Rated current | 3 A |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
