1-2325807-2 | TE Connectivity
LED Connector, 1-2325807-2
Order No.: 71P1622
EAN: 4099891625245
MPN:
1-2325807-2
Unit Price (€ / pc.)
1.5827 € *
Available in 5 Days: 5,900 pcs. - if ordered today

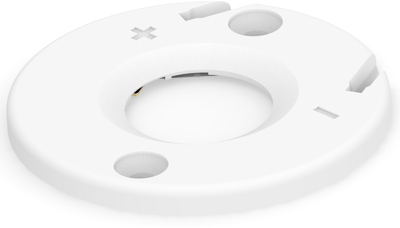

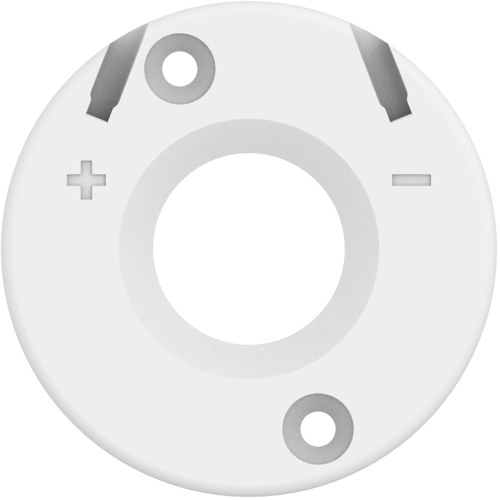

LED Connector, 1-2325807-2, TE Connectivity
The 1-2325807-2 is a led holder using a high strength, highly reflective and halogen free housing material. Quick and easy assembly of the COB LEDs in the luminaire.
Features
- Low profile
- Poke-in contact
- LED-clamping
- Distribution of pressure from LED across the heatsink
Applications
- Spot Lights
- General Lighting
- Downlights
- Horticultural Lighting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 1 pole | |
| Grid | 35 mm | |
| Connection | Poke-In connection | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Rated voltage (DC) | 60 V | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
