4-1419104-3 | TE Connectivity
Relay, 1 Form C (NO/NC), 24 V (DC), 660 Ω, 20 A, 277 V (AC), monostable, 4-1419104-3
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
6.3903 € *
Available in 12 Days: 793 pcs. - if ordered today
Total Price:
223.66 € *
Price list
Quantity
Price per unit*
35 pcs.
6.3903 €
75 pcs.
6.2713 €
*incl. VAT plus shipping costs
Subject to prior sale

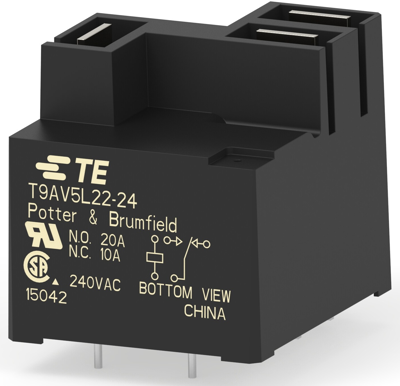

Power relay, 4-1419104-3, TE Connectivity
Power relay, Standard, Monostable, DC, 900 mW Coil Power Rating DC, 660 Ω Coil Resistance, UL Coil Insulation Class F.
Features
- Flux-proof plastic case
- 30A switching in 1 form C
- PCB mounting for coil and contacts
- UL class F insulation system standard
Applications
- Appliances
- Industrial Control
- HVAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form C (NO/NC) | |
| switching current | 20 A | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 660 Ω | |
| Switching Voltage (AC) | 277 V | |
| Connection | faston plug | |
| Coil type | monostable | |
| Contact material | AgCdO |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Cadmium oxide |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
