3-1617150-0 | TE Connectivity

Name: Relay, 2 Form C (NO/NC), 26.5 V (DC), 3200 Ω, 1 A, 28 V (DC), 115 V (AC), monostable, 3-1617150-0
Brand: TE Connectivity
SKU: 71P7488
Availability: OutOfStock

Relay, 2 Form C (NO/NC), 26.5 V (DC), 3200 Ω, 1 A, 28 V (DC), 115 V (AC), monostable, 3-1617150-0

Order No.: 71P7488

EAN: 4099891593872

MPN:

3-1617150-0

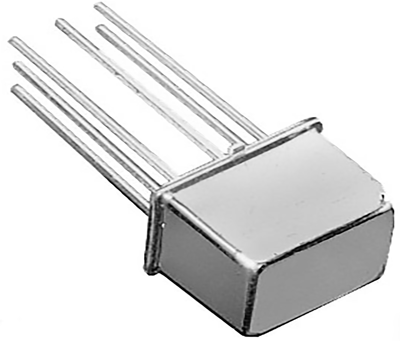

Image may differ

Key Specification:

Contact type 2 Form C (NO/NC)

switching current 1 A

Coil voltage (DC) 26.5 V

Coil resistance 3200 Ω

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

139.8607 € *

Available in 5 Days: 2 pcs. - if ordered today

Total Price:

279.72 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Low signal relay, 3-1617150-0, TE Connectivity

TO-5/.100 Grid relay, 2 Form C, DPDT, 2 C/O, 26.5 VDC Input, Coil suppression diode, 1 A, 26.5 VDC Coil voltage, 3200 Ω Coil resistance.

Features

Hermetically sealed
High shock and vibration ratings
Mounting pads
Excellent RF switching

Technical specifications

	Switching Voltage (AC)	115 V
	Coil type	monostable
	switching current	1 A
	Switching Voltage (DC)	28 V
	Coil voltage (DC)	26.5 V
	Connection	PCB pin
	Contact type	2 Form C (NO/NC)
	Contact material	AgPd + Au
	Coil resistance	3200 Ω
