3-1419104-6 | TE Connectivity
Relay, 1 Form C (NO/NC), 24 V (DC), 576 Ω, 20 A, 277 V (AC), monostable, 3-1419104-6
Unit Price (€ / pc.)
6.8425 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
6.84 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8425 €
5 pcs.
6.4855 €
10 pcs.
6.0690 €
25 pcs.
5.5335 €
*incl. VAT plus shipping costs
Subject to prior sale

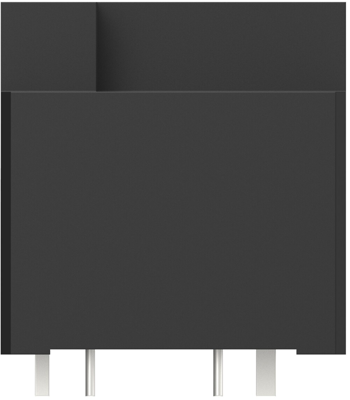

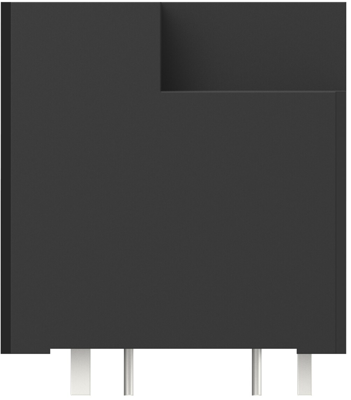

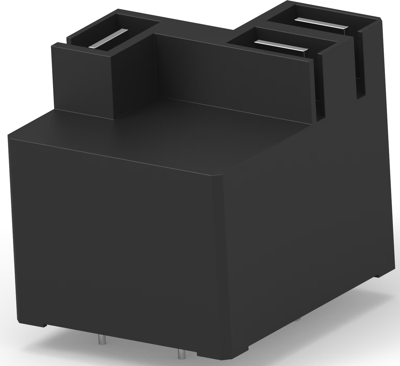

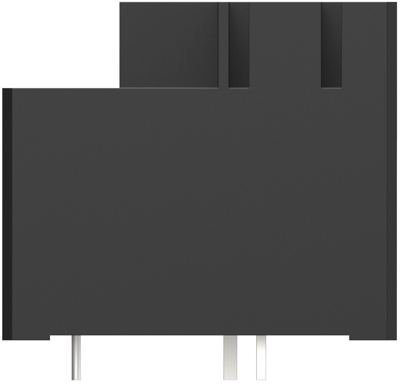

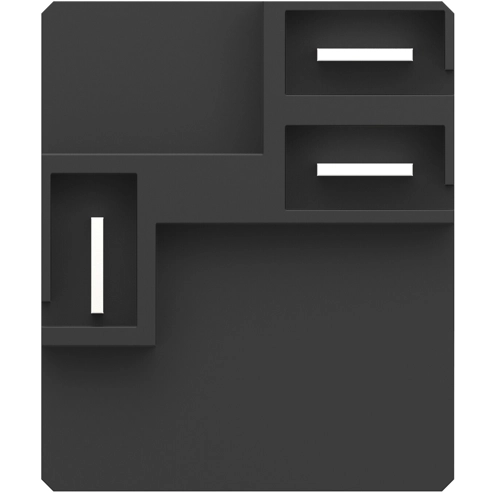

Power relay, 3-1419104-6, TE Connectivity
Power relay, Standard, Monostable, DC, 1000 mW Coil Power Rating DC, 576 Ω Coil Resistance, UL Coil Insulation Class F.
Features
- Wash-tight plastic case with knock off nib
- 30A switching in 1 form C
- PCB mounting for coil and contacts
- UL class F insulation system standard
Applications
- Appliances
- Industrial Control
- HVAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| switching current | 20 A | |
| Coil resistance | 576 Ω | |
| Coil voltage (DC) | 24 V | |
| Switching Voltage (AC) | 277 V | |
| Connection | faston plug | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgCdO | |
| Coil type | monostable |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85364110 |
Compliance
| Property | Value |
|---|---|
| Substance description | Cadmium oxide |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
