2-1419104-5 | TE Connectivity
Relay, 1 Form A (N/O), 12 V (DC), 155 Ω, 30 A, 277 V (AC), monostable, 2-1419104-5
Unit Price (€ / pc.)
11.3050 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
11.31 € *
Price list
Quantity
Price per unit*
1 pcs.
11.3050 €
10 pcs.
10.4958 €
25 pcs.
9.7937 €
50 pcs.
8.9012 €
*incl. VAT plus shipping costs
Subject to prior sale

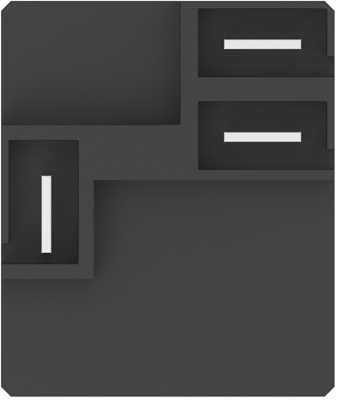

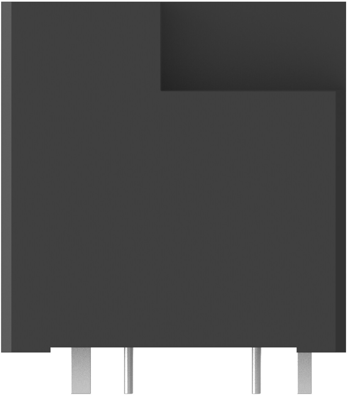

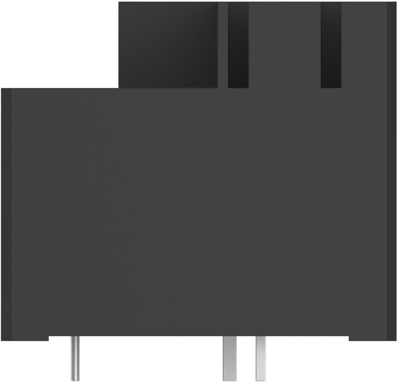

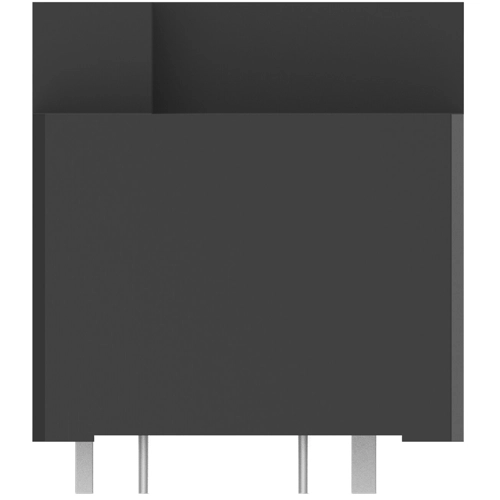

Power relay, 2-1419104-5, TE Connectivity
Power relay, Standard, Monostable, DC, 900 mW Coil Power Rating DC, 155 Ω Coil Resistance, UL Coil Insulation Class F.
Features
- Wash-tight plastic case with knock off nib
- 30A switching in 1 form A
- PCB mounting for coil and contacts
- UL class F insulation system standard
Applications
- Appliances
- Industrial Control
- HVAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| switching current | 30 A | |
| Coil voltage (DC) | 12 V | |
| Contact type | 1 Form A (N/O) | |
| Contact material | AgCdO | |
| Switching Voltage (AC) | 277 V | |
| Coil type | monostable | |
| Coil resistance | 155 Ω | |
| Connection | faston plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Cadmium oxide |
