1423156-6 | TE Connectivity

Relay, 4 Form C (NO/NC), 120 V (AC), 10 A, 120 V (DC), 120 V (AC), monostable, 1423156-6

Order No.: 71P2101
EAN: 4099891590581
MPN:
1423156-6
Series: GP

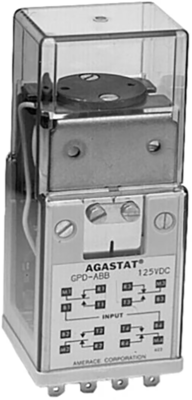

1423156-6 TE Connectivity Industrial Relays
Image may differ
Unit Price (€ / pc.)
674.7062 € *
Available in 5 Days: 4 pcs. - if ordered today
Total Price:
674.71 € *
Price list
Quantity
Price per unit*
1 pcs.
674.7062 €
2 pcs.
662.8657 €
*incl. VAT plus shipping costs
Subject to prior sale

Control relay, 1423156-6, TE Connectivity

The 1423156-6 is a control relay that offers a unique contact operating mechanism. Magnetic blowout device option increases DC current carrying ability approximately ten times for both N.O. and N.C. contacts. In both AC and DC operation, the addition of the device will normally double the contact life, due to reduced arcing. For use in AC circuits, the relay is supplied with a built-in rectification circuit, thus retaining the high DC efficiency of the electromagnet. The plastic dust cover has two windows to facilitate cooling and also to allow direct mounting of the relay.

Features

  • Occupies very small panel space
Technical specifications
Switching Voltage (AC) 120 V
Coil type monostable
Coil voltage (AC) 120 V
switching current 10 A
Switching Voltage (DC) 120 V
Connection plug-in connection
Contact type 4 Form C (NO/NC)
Contact material Ag
Logistics
Country of origin US
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
