2-1747981-3 | TE Connectivity

2-1747981-3

Order No.: 36P6366
EAN: 4099889860856
MPN:
2-1747981-3

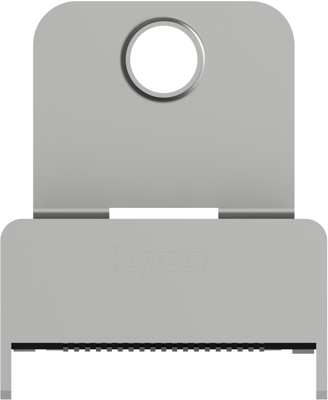

2-1747981-3 TE Connectivity HDMI Connector Image 1

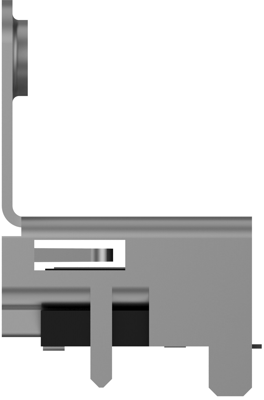

2-1747981-3 TE Connectivity HDMI Connector Image 2

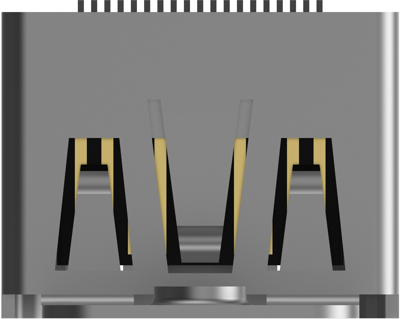

2-1747981-3 TE Connectivity HDMI Connector Image 3

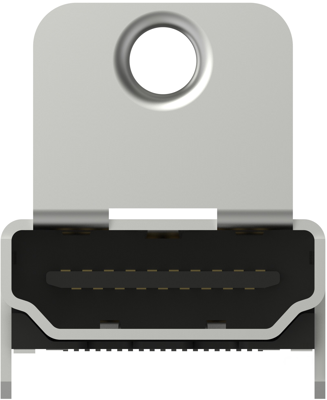

2-1747981-3 TE Connectivity HDMI Connector Image 4

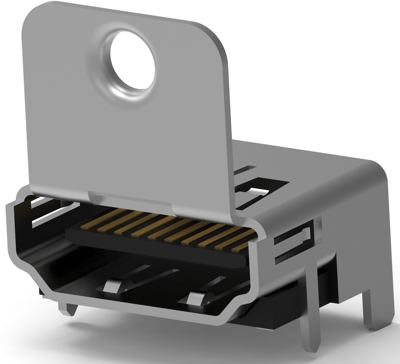

2-1747981-3 TE Connectivity HDMI Connector Image 5
Image may differ
Unit Price (€ / pc.)
3.9627 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
2,020.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
510 pcs.
3.9627 €

HDMI Connectors, 2-1747981-3, TE Connectivity

Ground Component Type: M3 Threaded Hole, Connector & Housing Type: Receptacle, Connector System: Cable-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Product Type: Connector, Stacked: No, Number of Ports: 1, PCB Mount Orientation: Right Angle, Number of Positions: 19, Preloaded: Yes, Shell Plating Finish: Matte, Connector Profile: Standard, Shell Plating Material: Tin, Contact Current Rating (Max): .5 A, Contact Mating Area Plating Thickness: .76 µm, Termination Method to Printed Circuit Board: Surface Mount, PCB Mount Retention Type: Straight Leg, PCB Mount Location: Top, Connector Mounting Type: Board Mount, Centerline (Pitch): 1 mm, Housing Color: Black, PCB Thickness (Min): 1.6 mm, Tail Length: 1.1 mm,1.6 mm, Mating Cycles (Max): 10000, Soldering Temperature (Max): 260 °C, Operating Temperature Range: -25 – 70 °C, Assembly Process Feature: Tape, Circuit Application: Signal, Packaging Method: Tape & Reel

Technical specifications
Filter Property Value
Product type panel sockets
Contact connection SMD
Colour black
Pin number 19 pole
Logistics
Property Value
Country of origin CN
Customs tariff number 85366910
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
