1-1747981-5 | TE Connectivity

1-1747981-5

default S
default L
Total price
(4.43 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
340 pcs.
4.43 €
*incl. VAT plus shipping costs
Description

Product by TE Connectivity at Bürklin Elektronik

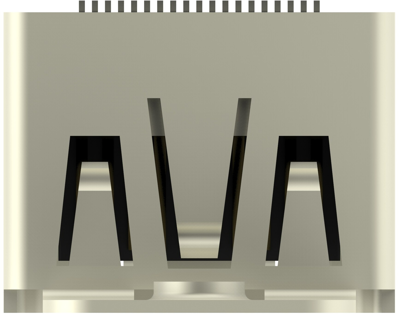

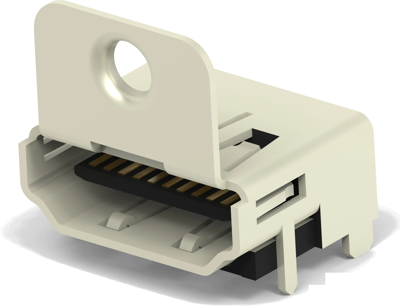

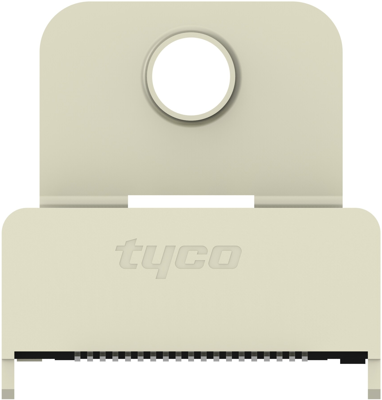

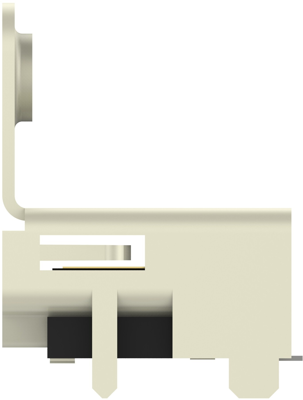

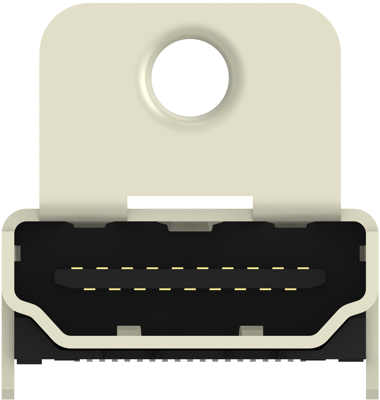

HDMI Connectors, 1-1747981-5, TE Connectivity

Ground Component Type: M3 Threaded Hole, Connector & Housing Type: Receptacle, Connector System: Cable-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Product Type: Connector, Stacked: No, Number of Ports: 1, PCB Mount Orientation: Right Angle, Number of Positions: 19, Preloaded: Yes, Shell Plating Finish: Matte, Connector Profile: Standard, Shell Plating Material: Tin, Contact Current Rating (Max): .5 A, Contact Mating Area Plating Thickness: .1 µm, Termination Method to Printed Circuit Board: Surface Mount, PCB Mount Retention Type: Straight Leg, PCB Mount Location: Top, Connector Mounting Type: Board Mount, Centerline (Pitch): 1 mm, Housing Color: Black, PCB Thickness (Min): 1.6 mm, Tail Length: 1.1 mm,1.6 mm, Mating Cycles (Max): 10000, Soldering Temperature (Max): 260 °C, Operating Temperature Range: -25 – 70 °C, Assembly Process Feature: Tape, Circuit Application: Signal, Packaging Method: Tape & Reel

Technical specifications
Version socket
Colour black
Contact connection Solder connection
Assembly SMD
Pin number 19 pole
Show similar products (0)
Logistics
Country of origin US
Customs tariff number 85366910
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
