5352152-4 | TE Connectivity

Female connector, 110 pole, pitch 2 mm, angled, 5352152-4

Order No.: 37P3578
MPN:
5352152-4

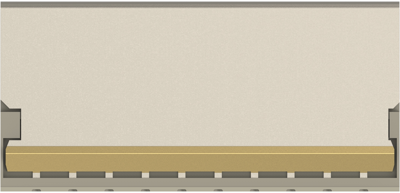

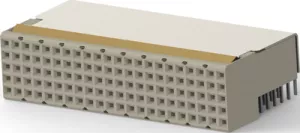

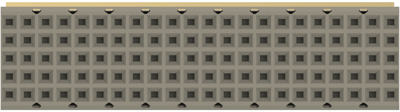

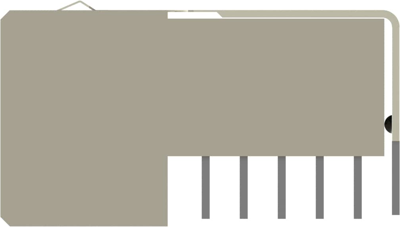

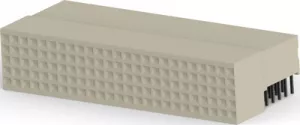

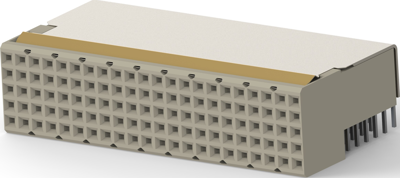

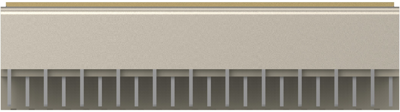

5352152-4 TE Connectivity Hard Metric Connectors Image 1
5352152-4 TE Connectivity Hard Metric Connectors Image 2
5352152-4 TE Connectivity Hard Metric Connectors Image 3
5352152-4 TE Connectivity Hard Metric Connectors Image 4
5352152-4 TE Connectivity Hard Metric Connectors Image 5
Image may differ
Unit Price (€ / pc.)
12.9948 € *
Available in 5 Days: 377 pcs. - if ordered today
Total Price:
12.99 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9948 €
10 pcs.
12.0666 €
25 pcs.
11.2693 €
50 pcs.
10.2459 €
*incl. VAT plus shipping costs
Subject to prior sale

Female connector, 5352152-4, TE Connectivity

Hard Metric Backplane PCB Mount Receptacle, ≤1 Gb/s, 22 Column, 5 Row, Mezzanine, 110 Position, 2 mm Centerline, Right Angle, Z-PACK 2 mm HM.

Technical specifications
Filter Property Value
Design B22
Contact type socket
Pin number 110 pole
Grid 2 mm
Connection press-in connection
Rated current 1.5 A
Orientation angled
contact surface gold-plated
Logistics
Property Value
Country of origin CN
Customs tariff number 85366930
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
