5106775-1 | TE Connectivity
Female connector, 55 pole, pitch 2 mm, straight, 5106775-1
 Order No.: 37P3582
  MPN:
  5106775-1
 Unit Price (€ / pc.)
   12.7211 €  *
   Available in 5 Days: 318 pcs. - if ordered today
 Total Price:
  12.72 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 12.7211 €
 5 pcs.
 12.0666 €
 10 pcs.
 11.2812 €
 25 pcs.
 10.2935 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Female connector, 5106775-1, TE Connectivity

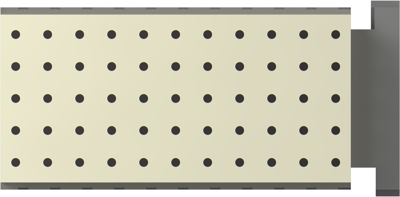

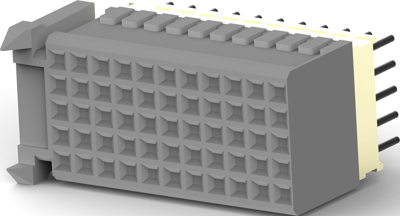

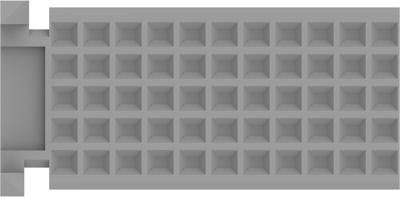

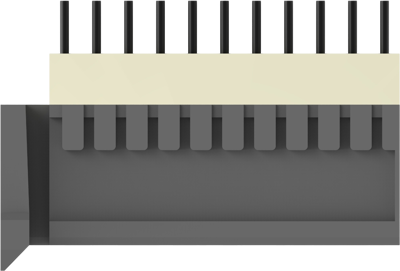

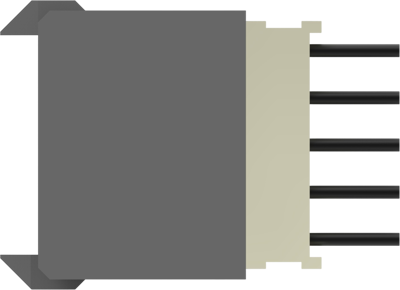

Hard Metric Backplane PCB Mount Receptacle, ≤1 Gb/s, 11 Column, 5 Row, Mezzanine, 55 Position, 2 mm Centerline, Vertical, Z-PACK 2 mm HM.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Design | C11 | |
| Contact type | socket | |
| Pin number | 55 pole | |
| Grid | 2 mm | |
| Connection | press-in connection | |
| Rated current | 1.5 A | |
| Orientation | straight | |
| contact surface | nickel-plated |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CN |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
