1934318-1 | TE Connectivity

Male connector, 192 pole, pitch 1.9 mm, straight, 1934318-1

Order No.: 71P3868
EAN: 4099891585808
MPN:
1934318-1
Series: Z-PACK TinMan

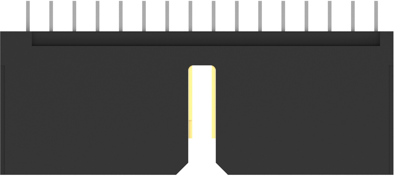

1934318-1 TE Connectivity Hard Metric Connectors Image 1

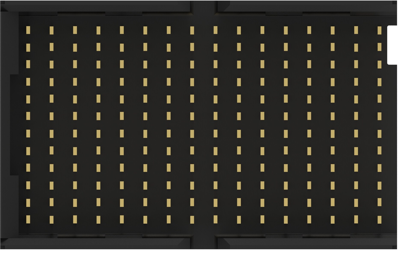

1934318-1 TE Connectivity Hard Metric Connectors Image 2

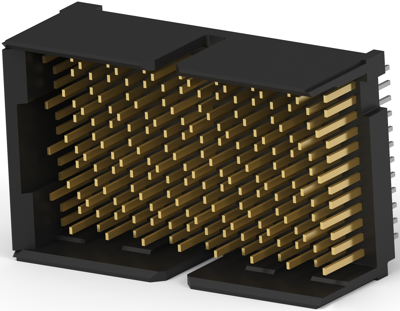

1934318-1 TE Connectivity Hard Metric Connectors Image 3

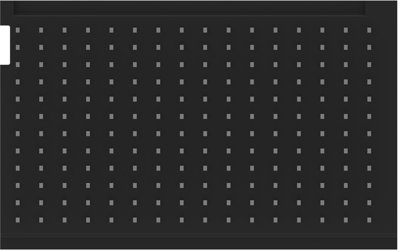

1934318-1 TE Connectivity Hard Metric Connectors Image 4

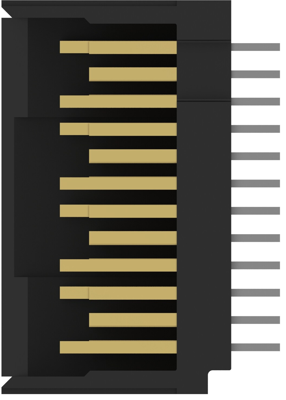

1934318-1 TE Connectivity Hard Metric Connectors Image 5
Image may differ
Unit Price (€ / pc.)
29.0598 € *
Available in 5 Days: 268 pcs. - if ordered today
Total Price:
29.06 € *
Price list
Quantity
Price per unit*
1 pcs.
29.0598 €
10 pcs.
26.7393 €
25 pcs.
24.0618 €
50 pcs.
21.6580 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Header, 1934318-1, TE Connectivity

High speed backplane connector, 192 Position, Mating alignment, Guide slot Mating alignment type, 12 Row, 16 Column, PCB Mount header.

Technical specifications
Contact type pin
Pin number 192 pole
Grid 1.9 mm
Connection press-in connection
Rated current 0.5 A
Orientation straight
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
