1934312-1 | TE Connectivity

Male connector, 120 pole, pitch 1.9 mm, straight, 1934312-1

Order No.: 71P3867
EAN: 4099891585792
MPN:
1934312-1
Series: Z-PACK

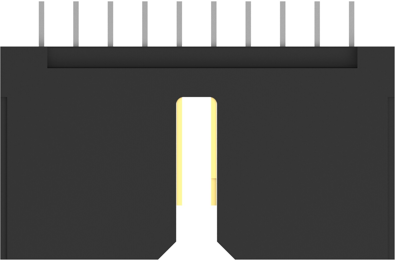

1934312-1 TE Connectivity Hard Metric Connectors Image 1

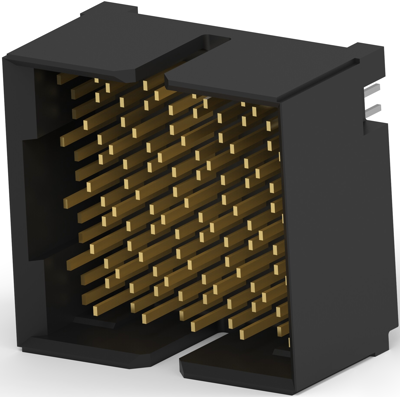

1934312-1 TE Connectivity Hard Metric Connectors Image 2

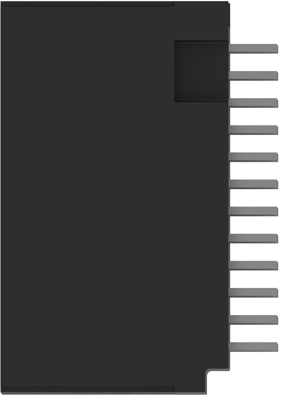

1934312-1 TE Connectivity Hard Metric Connectors Image 3

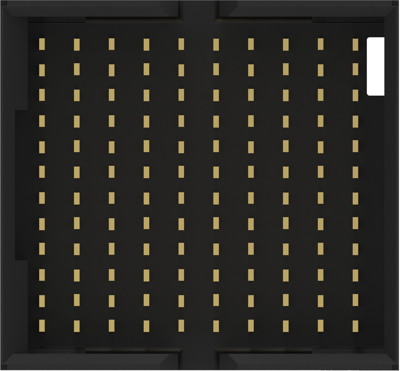

1934312-1 TE Connectivity Hard Metric Connectors Image 4

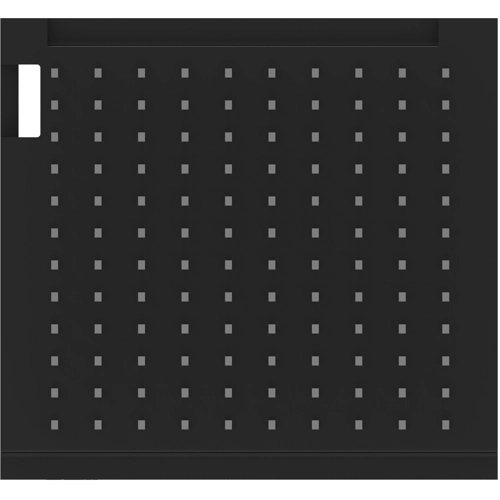

1934312-1 TE Connectivity Hard Metric Connectors Image 5
Image may differ
Unit Price (€ / pc.)
16.5172 € *
Available in 5 Days: 591 pcs. - if ordered today
Total Price:
16.52 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5172 €
10 pcs.
15.1963 €
50 pcs.
13.6731 €
100 pcs.
12.3046 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB header, 1934312-1, TE Connectivity

High speed backplane connector, 120 Position, Mating alignment, Guide slot mating alignment type, 12 Row, 10 Column, PCB Mount header.

Technical specifications
contact surface gold-plated
Rated current 0.5 A
Grid 1.9 mm
Pin number 120 pole
Orientation straight
Connection press-in connection
Contact type pin
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
