1410189-1 | TE Connectivity
Male connector, 56 pole, pitch 1.8 mm, angled, 1410189-1
Unit Price (€ / pc.)
67.3897 € *
Available in 5 Days: 134 pcs. - if ordered today

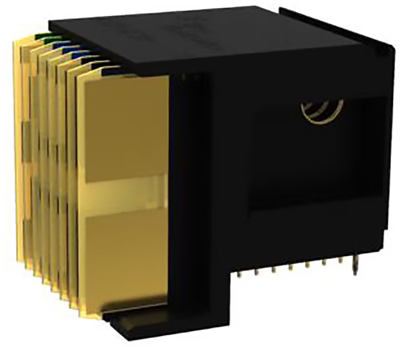

Backplane connector, 1410189-1, TE Connectivity
The 1410189-1 is backplane connector that offers levels of flexibility and customization. It optimizes footprints for signal integrity and ease of board design. This product also contains three levels of signal contact sequencing.
Features
- 10 Gbps performance
- Differential, Single-ended and Power
- Modular connector system
Applications
- Military
- Aerospace and Defense
- Mass data storage
- Telecommunications equipment
- High-end and mid-range servers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| Pin number | 56 pole | |
| Orientation | angled | |
| Contact type | pin | |
| Grid | 1.8 mm | |
| Connection | press-in connection | |
| Rated current | 1 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | No |
| Substance description | Lead |
| SVHC free | No |
