8-1393640-9 | TE Connectivity

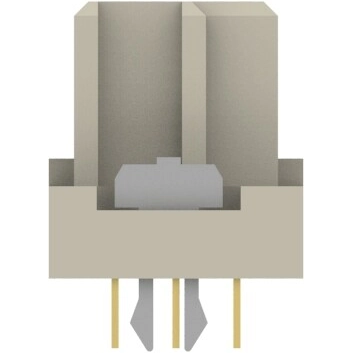

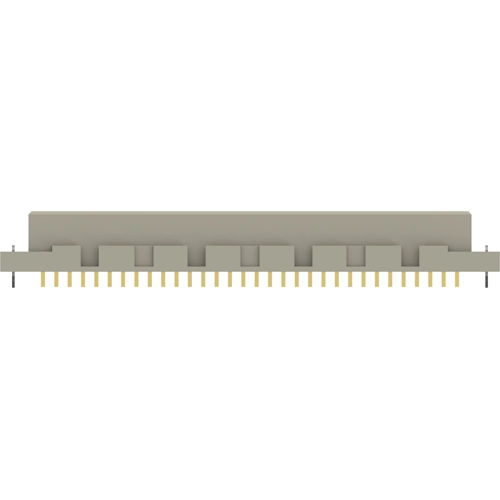

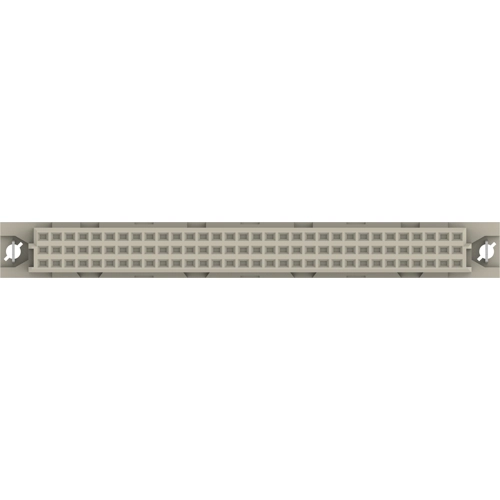

Female connector, type C, 96 pole, a-b-c, pitch 2.54 mm, solder pin, straight, 8-1393640-9
Order No.: 36P7153
MPN:
8-1393640-9
DIN 41612 Connector Type C 96 Contacts Receptacle
Series: EUROCARD DIN41612
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
6.2475 € *
Available in 5 Days: 7,116 pcs. - if ordered today
Total Price:
6.25 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2475 €
10 pcs.
5.8548 €
50 pcs.
5.5097 €
100 pcs.
5.2836 €
*incl. VAT plus shipping costs
Subject to prior sale
Spring strip, 8-1393640-9, TE Connectivity
Eurocard Receptacle Assembly, Types B and C, Standard and Short Versions.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | C | |
| Contact type | socket | |
| Pin number | 96 pole | |
| Contact row assignment | a-b-c | |
| Grid | 2.54 mm | |
| Connection | solder pin | |
| Orientation | straight | |
| Rated current | 1.5 A | |
| Performance level | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
