5650934-5 | TE Connectivity

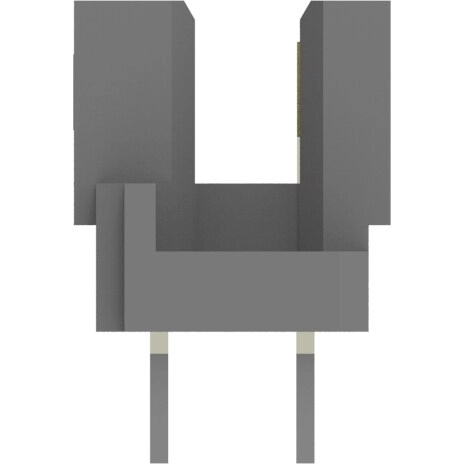

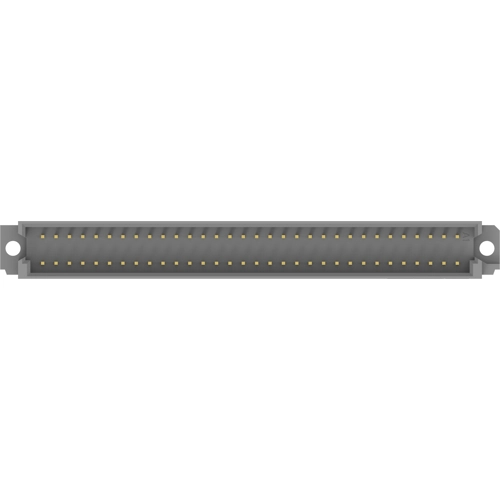

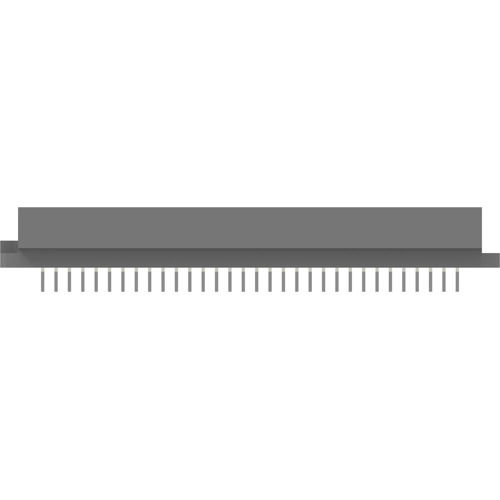

Male connector, type R, 64 pole, AC, pitch 2.54 mm, solder pin, straight, 5650934-5
Order No.: 36P7169
MPN:
5650934-5
DIN 41612 Connectors PLUG 64P VERT TYPE R
Series: EUROCARD DIN41612
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
6.8425 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
6.84 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8425 €
10 pcs.
6.4141 €
50 pcs.
6.0333 €
100 pcs.
5.7834 €
*incl. VAT plus shipping costs
Subject to prior sale
Blade strip, 5650934-5, TE Connectivity
Plug, Wire-to-Board, 64 Position, 2.54 mm Centerline, Printed Circuit Board, 3 Row, Vertical, 32 Column, Eurocard Type R, Eurocard Connectors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | R | |
| Contact type | pin | |
| Pin number | 64 pole | |
| Contact row assignment | AC | |
| Grid | 2.54 mm | |
| Connection | solder pin | |
| Orientation | straight | |
| Rated current | 1.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
