5536437-4 | TE Connectivity

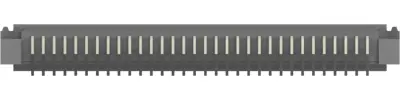

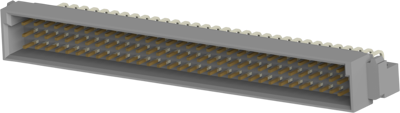

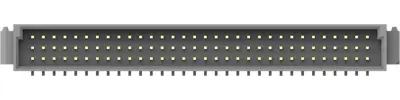

Male connector, type C, 96 pole, a-b-c, pitch 2.54 mm, solder pin, angled, gold-plated, 5536437-4
Order No.: 36P7017
MPN:
5536437-4
ASSY,PIN,EUROCARD,TYPE C,LEAD-FREE,96 PO
Series: EUROCARD DIN41612
Unit Price (€ / pc.)
11.7691 € *
Available in 5 Days: 74 pcs. - if ordered today
Total Price:
11.77 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7691 €
10 pcs.
10.9837 €
50 pcs.
10.3054 €
100 pcs.
9.6985 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 5536437-4, TE Connectivity
Plug, Board-to-Board, 96 Position, 2.54 mm Centerline, Printed Circuit Board, 3 Row, Right Angle, 32 Column, Eurocard Connectors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact row assignment | a-b-c | |
| Grid | 2.54 mm | |
| Performance level | 2 | |
| Orientation | angled | |
| Pin number | 96 pole | |
| contact surface | gold-plated | |
| Connection | solder pin | |
| Contact type | pin | |
| Design | C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
