148452-5 | TE Connectivity
Female connector, 160 pole, pitch 2.54 mm, press-in connection, straight, gold-plated, 148452-5
Unit Price (€ / pc.)
30.9043 € *
Available in 5 Days: 102 pcs. - if ordered today
Total Price:
30.90 € *
Price list
Quantity
Price per unit*
1 pcs.
30.9043 €
10 pcs.
29.0003 €
25 pcs.
27.3224 €
50 pcs.
25.8230 €
*incl. VAT plus shipping costs
Subject to prior sale

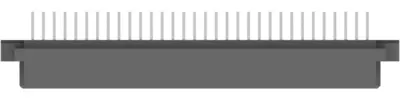

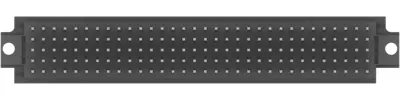

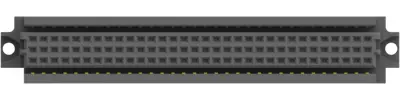

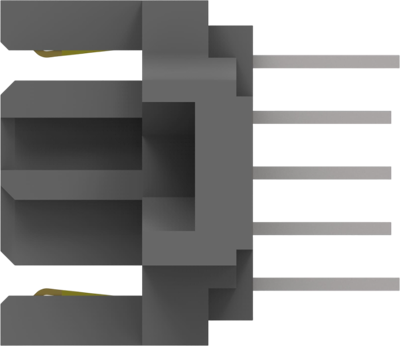

Female connector, 148452-5, TE Connectivity
Receptacle, Board-to-Board, 160 Position, 2.54 mm Centerline, Printed Circuit Board, 5 Row, Vertical, 32 Column, Eurocard Connectors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Orientation | straight | |
| Pin number | 160 pole | |
| contact surface | gold-plated | |
| Connection | press-in connection | |
| Contact type | socket | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
