552032-1 | TE Connectivity

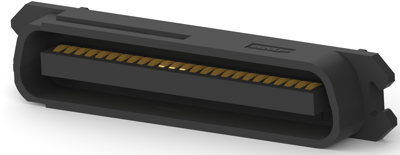

D-Sub plug, 50 pole, standard, equipped, straight, IDC connection, 552032-1
Order No.: 37P2908
EAN: 4099889787443
MPN:
552032-1
Unit Price (€ / pc.)
8.8060 € *
Available in 5 Days: 132 pcs. - if ordered today
Total Price:
8.81 € *
Price list
Quantity
Price per unit*
1 pcs.
8.8060 €
5 pcs.
8.3538 €
10 pcs.
7.8064 €
25 pcs.
7.1281 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub plug, 552032-1, TE
IDC D-Sub Connector, Plug, 26 – 24 AWG solid wire size, 0.13 – 0.32 mm² solid wire size, 24 AWG stranded wire.
Features
- Unsealable
- Unshielded
- Contact base material: Copper alloy
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Type of locking | knurled screw | |
| Pole image | standard | |
| Assembly | straight | |
| Version | pin header | |
| Contact connection | IDC connection | |
| Pin number | 50 pole | |
| Grid | 2.16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
