T2030012002-000 | TE Connectivity

Receptacle, 0.13-0.33 mm², AWG 26-22, crimp connection, T2030012002-000

Order No.: 72P3500
EAN: 4099889990249
MPN:
T2030012002-000
Series: HDC HE

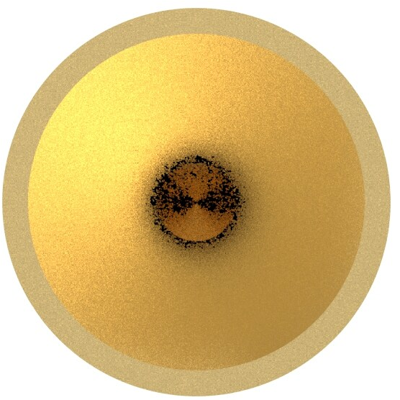

T2030012002-000 TE Connectivity Crimp Contacts Image 1

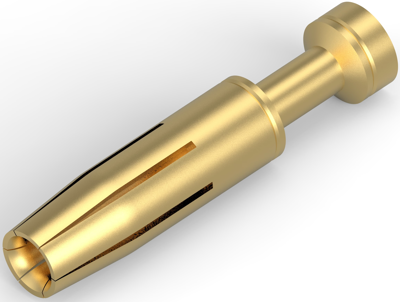

T2030012002-000 TE Connectivity Crimp Contacts Image 2

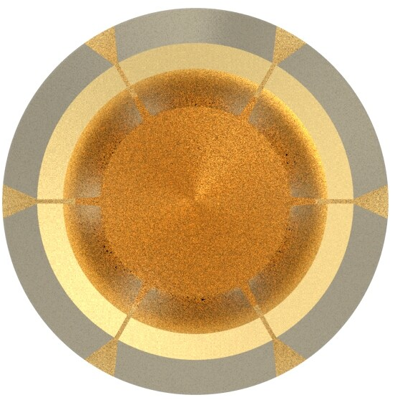

T2030012002-000 TE Connectivity Crimp Contacts Image 3

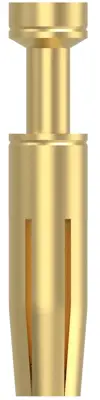

T2030012002-000 TE Connectivity Crimp Contacts Image 4
Image may differ
Unit Price (€ / pc.)
4.5815 € *
Available in 5 Days: 920 pcs. - if ordered today
Total Price:
4.58 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5815 €
10 pcs.
4.2245 €
50 pcs.
3.7961 €
100 pcs.
3.4153 €
*incl. VAT plus shipping costs
Subject to prior sale

Screw connector, T2030012002-000, TE Connectivity

The T2030012002-000 is a screw terminal, equipped with a wire protection, thus the use of ferrules is not necessary.

Technical specifications
Contact surface mating area gold-plated
AWG cross-section AWG 26-22
Contact surface Connection range gold-plated
Contact connection crimp connection
Cable cross-section 0.13-0.33 mm²
Version receptacle
Contact material copper alloy
Logistics
Country of origin CN
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
