T2020012008-000 | TE Connectivity

Receptacle, 0.75 mm², AWG 18, crimp connection, T2020012008-000

Order No.: 72P3483
EAN: 4099889990058
MPN:
T2020012008-000
Series: HDC HDD

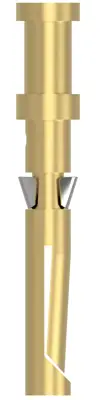

T2020012008-000 TE Connectivity Crimp Contacts Image 1

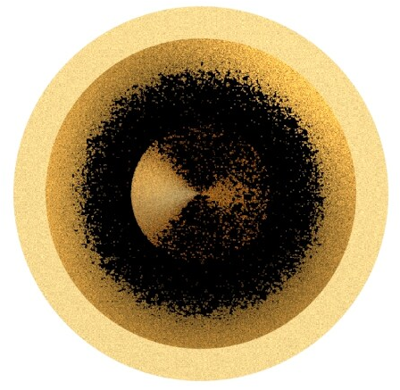

T2020012008-000 TE Connectivity Crimp Contacts Image 2

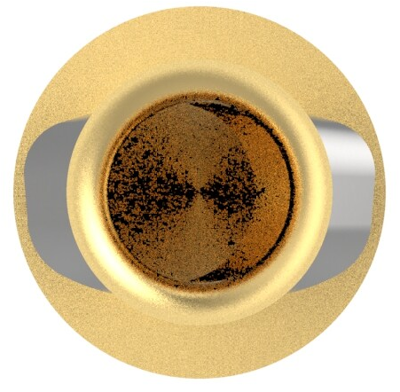

T2020012008-000 TE Connectivity Crimp Contacts Image 3
T2020012008-000 TE Connectivity Crimp Contacts Image 4
Image may differ
Unit Price (€ / pc.)
2.8560 € *
Available in 5 Days: 5,945 pcs. - if ordered today
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8560 €
10 pcs.
2.6180 €
50 pcs.
2.3562 €
100 pcs.
2.1301 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket contact, T2020012008-000, TE Connectivity

The T2020012008-000 is a crimp termination that represents a highly reliable vibration proof connection with low contact resistance and highest contact density which can be applied with manual and automatic crimping tools.

Technical specifications
Filter Property Value
Contact surface mating area gold-plated
AWG cross-section AWG 18
Contact surface Connection range gold-plated
Contact connection crimp connection
Cable cross-section 0.75 mm²
Version receptacle
Contact material brass
Logistics
Property Value
Country of origin CN
Customs tariff number 85389099
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
